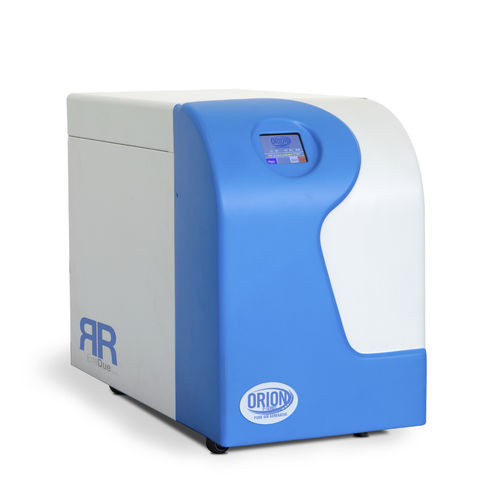

Dry air generator ORION P series

dry air generator
dry air generator
Add to favorites
Compare this product


Gas type
dry air
laboratory, medical
stackable, bench-top
PSA, catalytic reactor
Other characteristics
with touch screen
Output pressure

9 bar
(130.53 psi)

Rated capacity

1,100 W, 1,800 W
(1.5 hp, 2.4 hp)


ORION P generators produce pure, hydrocarbon-free, dried air with a very low dew point (-50°C). The operation of ORION P generators is to remove hydrocarbons by means of a catalytic reactor, which is associated with a PSA system for carbon dioxide removal and a drying tower to remove all traces of water vapor. ORION P generators can be used in all applications where absolutely pure air is required: in the calibration of analytical instruments, in the search for hydrocarbons in the air, and in some types of gas chromatography.
