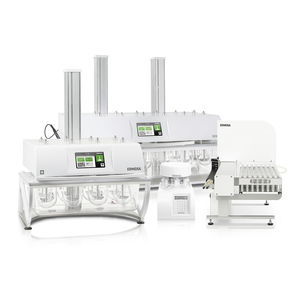

Automatic dissolution tester DT 9510

fully-automaticsemi-automaticmanual

Overview
The ERWEKA DT 9510 Series is a high‑capacity digital dissolution tester combining an embedded PC platform with modular hardware. Designed for reliable, parallel USP/EP/JP‑compliant testing, it supports expansion up to 14 test stations and integration with automated analysis systems.

Key features

• Embedded digital PC technology with modern user interface and scalable software architecture.
• TestAssist guided workflow and DirectHelp on‑screen assistance; multilingual operation.
• Single powerful motor driving all stations (up to 14) for synchronized, comparable parallel tests.
• Large thermally stable water bath; optional external flow‑through heater to reduce vibrations and maintain temperature stability.
• Optional AirLift system for electrically assisted, two‑hand safety head raising/lowering.
• Upgradeable hardware path from manual to semi‑automatic or fully automated offline/online systems (e.g. Disso.NET 4, HPLC, UV/Vis, FRL collector, ASS‑9 sampling station).
• Optional automatic tablet drop with temperature tolerance check before release.
• Audit Trail, Method Management and full 21 CFR Part 11 compliance with detailed logging and user management.
• Network and USB printing capability with LAN printer discovery and driver selection.
• Sampling modes: high‑head, low‑head and cleaning mode; optional automatic sampling stations and sample collectors for HPLC/UV analysis.
• Compatibility with USP methods: USP 1 (basket), USP 2 (paddle), USP 5, USP 6 via standardized shaft designs and attachments.

Options & Accessories

• AirLift system (two‑hand safety), automatic tablet drop, water bath LED illumination for improved visibility.
• External autonomous cooling device and external flow‑through heater.
• Upgrade to offline/online dissolution systems with Disso.NET (video monitoring/recording, MySQL/SQL database, FTP export for LIMS).
• Paddles, baskets and specialized attachments for various dissolution tests; dissolution qualification toolkit and IQ/OQ/PV documentation and services.

Technical specifications

• Weight: 110 kg
• Dimensions (H x W x D): 850 x 1062 x 650 mm
• Voltage: 115/230 V; 50/60 Hz
• Speed range: 20–250 U/min
• Vessel volume options: 400 ml / 1000 ml / 2000 ml
• Interfaces: 1x RS‑232, 2x USB, 2x Ethernet/RJ45
• Test stations: DT 9512 = 12 (2 rows); DT 9513 = 13 (2 rows); DT 9514 = 14 (2 rows)
• USP methods supported: USP 1 / USP 2 / USP 5 / USP 6
• Fuses: 2 A
• Protection class: I / EN 61140
• Protection type: IP 21 / IEC 529
• Operation: 7" touchscreen, 800 x 480 pixel
• Sampling positions / modes: High‑head / Low‑head / Cleaning mode
• Ambient operating temperature: +10 °C to +30 °C (minimum ambient: -5 °C below set temperature)
• Storage & transport temperature: +5 °C to +40 °C
• Relative humidity: 25–80 % non‑condensing
