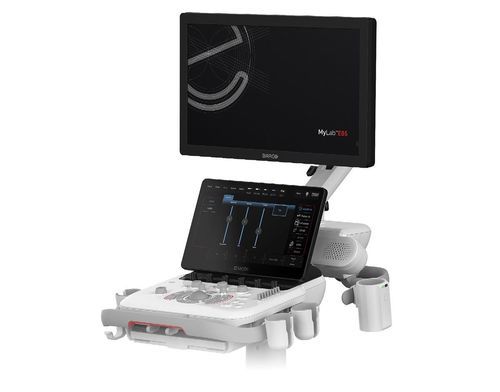

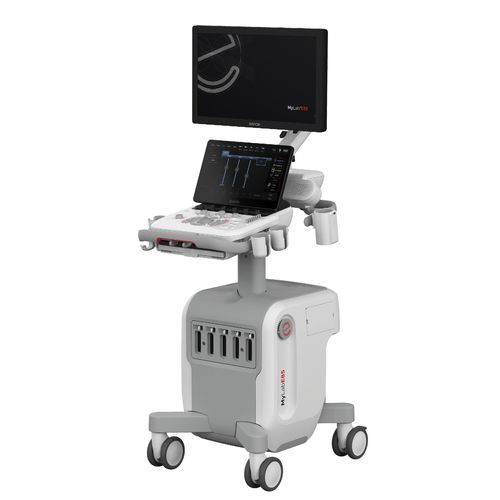

On-platform ultrasound system MyLab™E85

for multipurpose ultrasound imagingfor breast ultrasound imagingfor urology ultrasound imaging

Overview
MyLab™E85 is an Esaote ultrasound system developed for a broad range of clinical imaging tasks, from abdominal and obstetric exams to musculoskeletal and interventional procedures. The platform provides a consistent diagnostic workflow that supports clinical decision-making while simplifying daily operations.

Key product highlights

• 24-inch BARCO monitor — LCD display for detailed image visualization.
• Ultra-wide 15.6-inch tiltable touchscreen for ergonomic control and direct interaction.
• Two control panel configurations — redesigned conventional control panel (ergonomic) or a touch-sensitive interface that is easy to clean for critical environments.
• Five active transducer connectors for immediate probe switching in fast-paced clinical settings.

Interfaces & clinical settings
MyLab™E85 offers two simplified interaction concepts so users can select the interface best suited to their workflow and environment: a conventional panel redesigned to reduce physical strain, or a touch-sensitive interface that facilitates cleaning and integration into sterile or critical-care settings. The system is suitable for hospitals, outpatient clinics and interventional suites requiring reproducible performance across applications.

Probes and coverage
The system supports a comprehensive range of high-performance probes to cover multiple specialties. Examples of probes and primary applications include:

• LMX 3-16 — Type: Linear — Applications: MSK, Small Parts, Thyroid, Breast, Rheuma
• CX 1-8 — Type: Convex & Microconvex — Applications: Abdominal, Obstetric, Gynecology, HIP (MSK), Deep Vascular
• LMX 4-20 — Type: Linear — Applications: MSK, Thyroid, Small Parts, Rheuma, Breast
• IHX 6-25 — Type: Linear — Applications: HIP (MSK)
• mCX / C 2-9 — Type: Convex & Microconvex — Applications: Abdominal, Obstetric, Gynecology, HIP (MSK), Deep Vascular
• E 3-12 — Type: Endocavitary — Applications: Gynecology, Obstetric, Urology
• TLC 3-13 — Type: Endocavitary — Applications: Urology
• PX 1-5 / PX 2-9 / PX 4-13 — Type: Phased Array / Cardiac — Applications: Cardiac, Pediatrics, Transcranial
• SB3123, BL433, VC 2-9 — Type: Volumetric — Applications: Gynecology, Obstetric, MSK, Breast
• Interventional probes (SI2C41, IL 4-13, LP 4-13, 5CWL, IOT342) — Type: Interventional & Pencils — Applications: Abdominal, Surgery, Vascular

Guided Therapy Solutions
MyLab™E85 GTS is a dedicated edition for Interventional Radiology (IR) that provides imaging tools to support precise needle guidance, lesion visualization and procedural workflow during biopsies and targeted treatments.

Clinical applications & imaging technologies
Typical application areas include General Imaging, Women’s Health and Interventional procedures. The system integrates multiparametric tools and imaging technologies such as microV (microvascular imaging), shear wave elastography, multiparametric reporting, QSI/QElaxto/QAI technologies and fusion/augmented reality workflows to assist lesion detection and characterization.

Service & regulatory information
Remote technical support is available to check system parameters and components via a remote service program. Probe coverage is provided for standard probes without annual limits. The product is shipped with essential protection including a 3-year warranty. Manufacturer: Esaote S.p.A.; compliance: MDR 2017/745; classification: Class IIa.

Specifications

• Model / commercial name: MyLab™E85
• Brand: Esaote
• Monitor: 24-inch BARCO LCD
• Touchscreen: Ultra-wide 15.6-inch tiltable touchscreen
• Control panels: Two configurations — redesigned conventional and touch-sensitive (cleanable)
• Connectors: 5 active transducer connectors for immediate probe switching
• Probe coverage: Full range of high-performance probes across specialties (MSK, thyroid, breast, abdominal, obstetric, gynecology, cardiac, interventional)
• Guided Therapy: GTS edition for Interventional Radiology (IR)
• Service: Remote technical support, 3-year warranty
• Regulatory: Manufacturer Esaote S.p.A.; complies with MDR 2017/745; classified as Class IIa
