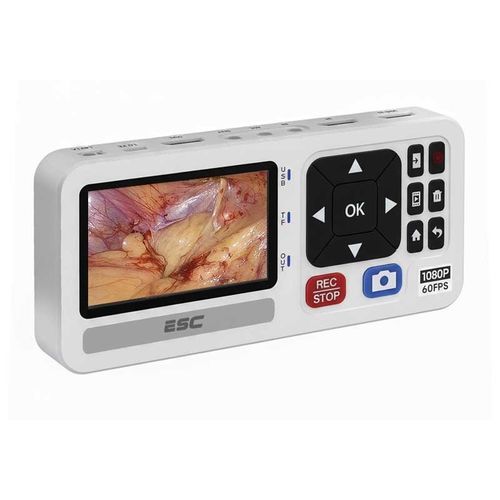

Surgical video recorder REC-365R

medicalfor endoscopy4K

Buy Now : https://www.escmedicams.com/online-store/4K-Medical-Surgical-Recorder-for-Laparoscopy-p406564804




Overview – ESC Medicams REC-365R 4K Surgical Recorder
The ESC Medicams REC-365R 4K and Full HD Medical Surgical Recorder is a high-performance recording solution developed for endoscopic and laparoscopic surgery environments. It delivers ultra-clear image capture and precision video recording, helping surgeons document procedures with outstanding detail. Designed for clinical efficiency, the REC-365R supports direct recording to USB flash drives and SD cards, ensuring fast, secure, and convenient data storage. Its intuitive controls and dependable operation make it an ideal choice for surgical documentation, medical training, and case review.


Key Features of REC-365R Medical Recorder

High-Resolution Display: The built-in high-resolution screen provides real-time visualization of surgical procedures. This allows surgeons and staff to instantly monitor, review, and document procedures without the need for external displays or computers.

Advanced Video & Image Recording: Record surgical procedures in 4K and Full HD quality to ensure accurate and detailed documentation of every critical step. Ideal for laparoscopic surgery, endoscopy recording, and medical education.

Standalone Playback Function: Review recorded videos and images directly on the recorder’s screen. This standalone playback feature eliminates the need for a laptop or PC, improving workflow efficiency in the operating room.

Flexible Storage Options: The ESC Medicams REC-365R supports external hard drives up to 2TB, SD memory cards up to 512GB, and USB pen drives up to 512GB. This versatile storage support allows easy archiving, fast file transfer, and secure sharing of surgical videos and images, making it suitable for hospitals, surgical centers, and teaching institutions.

Record Surgeries from Endoscopy Camera: Capture Full HD videos and high-resolution snapshots directly from endoscopy cameras. Recorder 365R ensures seamless connectivity with various brands of endoscopy and laparoscopy cameras through an HDMI to DVI interface, delivering reliability and versatility in surgical use, and also allows connection to external large medical monitors for enhanced viewing.

Specifications

Video Input (Switchable): 1x HDMI, 1x VGA, 1x CVBS, 1x YPbPr

Video Resolution: 4096x2160p30, 1920x108060p/50p, 1920x108060i/50i, 1280x72060p/50p, 720x576i, 720x480i

Loop Out to External Monitor: 1x HDMI (1080p)

Audio: HDMI / RCA Audio / External Line In

Display Screen: 3 Inch

Remote Control: Yes

Screenshot During Recording: Yes

Playback: Yes

Record Resolution: 1920x1080 / 1280x720 / 1280x1024 / 1024x768

Storage Devices: Flash USB Drive (up to 512GB), Hard Disk (up to 8TB), SD Card (up to 512GB)

Storage File System: FAT32 / exFAT / NTFS

Record Format: MP4 (H.264 Codec)

Video Bitrate: Low 4MB / Mid 10MB / High 18MB

Audio Bitrate: 128KB

File Size per File: 4GB (FAT32) or 16GB (NTFS/exFAT)

Scheduled Recording: Supported

UVC/UAC Compatible: Yes

Compatible Systems: Windows 10 / Mac OS / Linux

Third-Party Software Compatibility: OBS / Xsplit / Wirecast / FLME / QuickTime / VLC

Languages: English / Chinese / Japanese / Italian

Dimensions (W×L×H): 158 x 70 x 25 mm

Package Dimensions (W×L×H): 186 x 145 x 78 mm

Net / Gross Weight: 0.18 kg / 0.6 kg

Operating Temperature: 0–55C, Storage Temperature: -20–80C

Power / Consumption: 12V DC 1.0A / 5W

Included in Package: REC-365R – 1 pc, MMC Cable – 1 pc, HDMI to HDMI Cable 1.2 m – 1 pc, USB Cable 0.8 m – 1 pc, Power Adapter 12V 1A – 1 pc, Remote Control – 1 pc

Note: Battery not included. HDMI to DVI cable not included. It can also be powered by F-series batteries including NP-F550/750/970. Batteries are not included in the package.
