Endoscope camera FHD-LP-8000medicalendoscopicsurgical
Add to favorites
Compare this product
Characteristics
- Applications
- medical, for endoscopes, endoscopic, surgical
- Technology
- digital
- Resolution level
- full HD, 1920 x 1080
- Sensor type
- CMOS
- Light source
- LED
- Configuration
- portable, all-in-one
- Other characteristics
- with zoom, with USB port, with screen, with LCD screen
- Weight
7.5 kg
(16.53 lb)
Description
Product overview

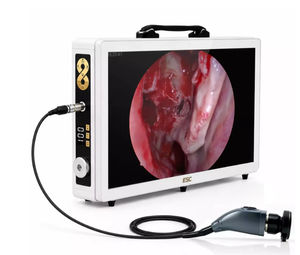

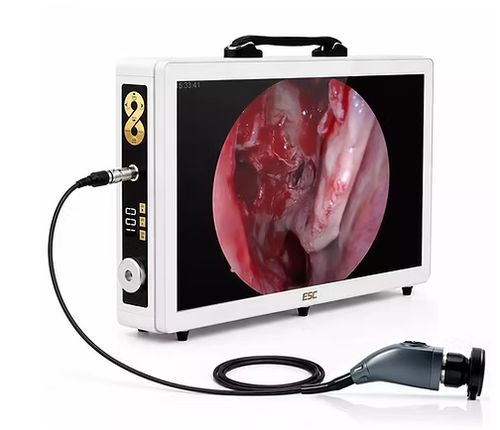

The FHD-LP-8000 is a portable 3-in-1 endoscopy camera integrating a Full HD imaging module, a medical-grade 22" IPS monitor and a 100W LED light source into a single compact unit. Designed for clinical and surgical environments, it provides real‑time 1080p/60fps imaging, accurate color rendering and on‑board surgical recording and photo capture.
Key features
Features (high level)
Applications
Technical specifications
The FHD-LP-8000 is a portable 3-in-1 endoscopy camera integrating a Full HD imaging module, a medical-grade 22" IPS monitor and a 100W LED light source into a single compact unit. Designed for clinical and surgical environments, it provides real‑time 1080p/60fps imaging, accurate color rendering and on‑board surgical recording and photo capture.
Key features
- Full HD (1080p) image output at 60 fps with zero delay
- 1/2" Sony Exmor sensor (references to 1/1.8" in some specs) for a wider field of view
- Accurate color reproduction and fine-detail visibility (100% sRGB, HDR10, 1 billion colors)
- Deep focus optics with 4K anti‑reflection coupler adapter
- Integrated surgical recorder: Full HD video and photo capture to USB (supports up to 500GB)
- Up to 5x zoom control from the unit
- Waterproof camera head option for flexible use
Features (high level)
- All‑in‑one portable system combining camera, monitor and light source
- Medical‑grade 22" Full HD IPS display with tempered protection glass
- 100W high‑intensity LED light source with Storz‑type fiber connector
- Wide view chip with zero delay and fast frame‑rate imaging
- Anti‑glare coupler compatible with rigid and flexible endoscopes
Applications
- ENT examinations and procedures
- Sinus and nasal cavity surgery
- Laparoscopy and abdominal procedures
- Urology, cystoscopy and hysteroscopy
- Arthroscopy and spine surgery
Technical specifications
- Model: FHD-LP-8000 (Portable 3‑in‑1 Endoscopy Camera)
- Image output: Full HD 1080p (1920 x 1080) at 60 fps
- Sensor: Sony Exmor (mentions of 1/2" and 1/1.8" Ex‑Mor CMOS HDR)
- Monitor: 22" Full HD IPS, HDR10 support, 100% sRGB, 1 billion colors, brightness 500 cd/m², viewing angle 178°
- Light source: Integrated 100W LED; color temp 5700–6500K; illumination >3,000,000 Lux; LED life ~50,000 h; max 2700 lm; Storz connector; 60° lens; dual fan cooling
- Optics: Deep focus, 4K anti‑reflection coupler, anti‑glare coupler
- Camera head: Fully waterproof option available
- Zoom: Up to 5x optical/processing zoom
- Recording & storage: Onboard Full HD recording and photo capture to USB (supports up to 500 GB)
- Outputs: 1x HDMI
- Power: AC 110–240V
- Dimensions: 52.5 cm (W) x 31.5 cm (H) x 15 cm (D); Weight: 7.5 kg
