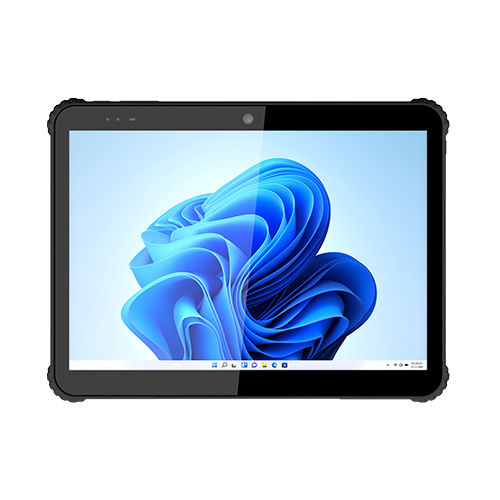

RFID technology medical tablet PC MW-100

SSD 128 GBfull HDwaterproof

Highlights

• Unlock unparalleled productivity with the MW-100 Slim Rugged Tablet PC, your ultimate solution for diverse and demanding environments.
• Robust IP66 waterproof rating, drop/shock protection (MIL-STD-810H standard) and sunlight readable LCD ensure it thrives in field service, construction, public safety, emergency services, manufacturing, industrial settings, healthcare, logistic and many more.
• Customizable with optional features like a 2D barcode scanner, 4G LTE, RFID, CAC card reader, and more.
• Choose the MW-100 for unparalleled reliability and versatility.

Features

• 10.5″ LCD Display (1920 x 1280 Resolution)
• Sunlight Readable LCD Display (600 nits)
• Intel® Processor N200
• Windows 11 Pro/IoT OS
• IP66 Water & Dust Protection
• 5ft Drop / Shock Protection (MIL-STD-810H)
• Intel® Wi-Fi 6E AX210, Bluetooth 5.2, Optional 4G LTE
• Optional: Barcode Reader, SIM Slot
• ODM Options: RFID or High Precision GPS Module Via Pogo-Pin Expansion Slot

Product Details

• Slim but Rugged Design for Maximum Portability and Durability: Slim profile (11.6mm), lightweight yet resilient, ideal for construction, public safety, logistics. Full rugged functionality with easy handling.
• Unmatched Performance with Intel® Alder Lake N200 Processor: Max turbo frequency 3.7GHz, 6MB Intel® Smart Cache, 8GB LPDDR5 memory, 128GB flash storage. Smooth multitasking and reliable performance in demanding environments.
• Versatile Operating Systems: Windows 11 Pro or IoT for a customized experience. Flexibility and seamless integration with existing systems.
• Rugged and Ready for the Field: IP66-rated water and dust protection, MIL-STD-810H certification for shock and vibration resistance. Survives drops up to 5ft, operates in -10°C to 50°C.
• Sunlight-Readable Display and Impact Protection: 10.5″ sunlight-readable IPS LCD, 1920 x 1280 resolution, 600 nits brightness, chemically hardened glass for impact resistance.
• Advanced Connectivity Options: Intel® Wi-Fi 6E, Bluetooth 5.2, optional 4G LTE, multiple I/O ports (2 USB-C, 14-pin docking connector, optional 17-pin PoGo pin connector, SIM slot).
• Extended Battery Life: 2S1P 7.6V 4100mAh (31Wh) battery, magnetic charging connector, optional external battery support.
• Built-in 2D Barcode Scanner (Optional): Integrated for quick and accurate scanning, ideal for inventory management, patient tracking, asset monitoring.
• Rear External Interface: Expansion slot for modules like RFID and high-precision GPS.

Specifications
RUGGEDNESS
IP Rating: IP66
Drop Rating: MIL-STD-810H, Method 516.8, Procedure IV
Shock Rating: MIL-STD-810H, Method 516.8, Procedure I
Vibration Rating: MIL-STD-810H, Method 514.8, Procedure I

SYSTEM
Processor: Intel® Processor N200, Max Turbo Frequency 3.7GHz, 6 MB Intel® Smart Cache
GPU: Intel® UHD Graphics, Max Dynamic Frequency 750MHz
Memory: 8GB LPDDR5
Storage: 128GB Flash Memory
OS: Windows 11 64-bit Pro/IoT
Security: TPM 2.0

DISPLAY
Screen Size: 10.5” IPS LCD
Resolution: 1920 x 1280
Brightness: 600 nits
Contrast Ratio: 1500:1
Touch Screen: Capacitive 10-Point Multi-Touch
Top Glass: Chemically Hardened Glass for Front Impact Resistance

COMMUNICATIONS
Wi-Fi: Intel® Wi-Fi 6E AX210
Bluetooth: Bluetooth 5.2
4G LTE (Optional): 4G LTE Module with M.2 Interface

POWER
AC Adapter: 110-220V AC input, 12V/3A DC output, Magnetic Connector
Battery: 2S1P 7.6V 4100mAh (31Wh)

I/O INTERFACE
Sensors: G-sensor, Light Sensor
Audio: 2 x Speakers, 1 x Built-in Mic
Camera: Front Camera: 5MP, Rear Camera: 13MP with Auto Focus
Ports: 2 x USB C Ports (Charging / USB 3.1 / Display), 1 x 14 Pin Docking Connector (Support USB 2.0 & Charging), Magnetic Charger Jack, Optional: 1 x 17 Pin PoGo Pin Connector on Rear Chassis (Support USB 2.0 and External Battery), 1 x SIM Slot
Buttons: Power On/Off Button (Hold 10s will Reset the System), Volume+/- Button, 1 x Programmable Button
Barcode Scanner (Optional): Built-in 2D Barcode Scanner

MECHANICAL
LED: 1 x Charging Indicator, 1 x Power Indicator
Dimensions: 246.6 x 185.6 x 11.6mm
Weight: 800g
Screw Specifications: M2.5 Type

ENVIRONMENTAL
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Humidity: 10% to 90% Non-condensing

REGULATORY
Certification: FCC, CE, IATA
Medical Certification

Optional Components

• 1D/2D Barcode Reader - Edoo-M1
• Docking Station: 2 USB2.0, 1 RJ45 10/100M, 1 RS232 DB9 COM, 1 DC Jack, Regular AC Adapter
• Charging Station: 4-Port Charging Station, Regular AC Adapter
• Hand Strap
• Telit 4G LTE

Caractéristiques / spécifications techniques

• Model: MW-100
• Brand: Estone
• Display: 10.5” IPS LCD, 1920 x 1280, 600 nits
• Processor: Intel® N200, 3.7GHz
• Memory: 8GB LPDDR5
• Storage: 128GB Flash
• OS: Windows 11 Pro/IoT
• Battery: 4100mAh (31Wh)
• Weight: 800g
• Dimensions: 246.6 x 185.6 x 11.6mm
• IP66, MIL-STD-810H
• Wi-Fi 6E, Bluetooth 5.2, Optional 4G LTE
• Front Camera: 5MP, Rear Camera: 13MP AF
• Optional: Barcode Reader, RFID, GPS, SIM Slot, Docking Station, Charging Station, Hand Strap
