PTA catheter FREEWAY™ 014
peripheralballoondrug eluting

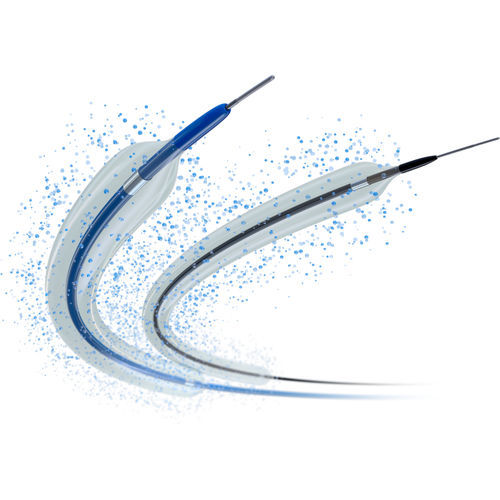

PTA catheter - FREEWAY™ 014 - Eurocor - peripheral / balloon / drug eluting

PTA catheter - FREEWAY™ 014 - Eurocor - peripheral / balloon / drug eluting - image - 2

Add to favorites

Compare this product

Go to the Eurocor website for more information

Characteristics

Application: PTA
Area of the body: peripheral
Options: balloon, drug eluting
Outer diameter: 4 FR
Total length: 120 cm, 150 cm
(47 in, 59 in)
Balloon length: 40 mm, 80 mm, 120 mm, 150 mm
(1.57 in, 3.15 in, 4.72 in, 5.91 in)
Balloon diameter: 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm
(0.08 in, 0.1 in, 0.12 in, 0.14 in, 0.16 in)

Description

The FREEWAY™ 014 Paclitaxel-eluting PTA balloon dilatation catheter is an over-the-wire (OTW) catheter which is specially designed for peripheral interventions in infra-popliteal lesions. It is indicated for widening stenosis of de novo and restenotic lesions in the iliac, femoral, iliac-femoral, popliteal, infra-popliteal and renal arteries. This balloon is also used forpost-dilatation after stent implantation in the peripheral vascular system. Technical Data Design - Coaxial design – OTW Shaft Diameter - distal 3.1 F / medial 3.8 F / proximal 3.8 F Guide wire diameter - 0.014" (0.36 mm) Balloon coating - Paclitaxel (3μg/mm²) within a shellac matrix (1:1 ratio) Balloon material - PA, Polyamid/Nylon Balloon folding - 2-folding for 2.0 mm 3-folding for 2.5 – 4.0 mm Balloon characteristic - Semi-compliant Recommended introducer sheath - 4 F Nominal pressure - 6 atm Rated burst pressure - Diameter 2.0 – 2.5 mm: 16 atm Diameter 3.0 – 4.0 mm: 14 atm Packaging unit - 1 unit
