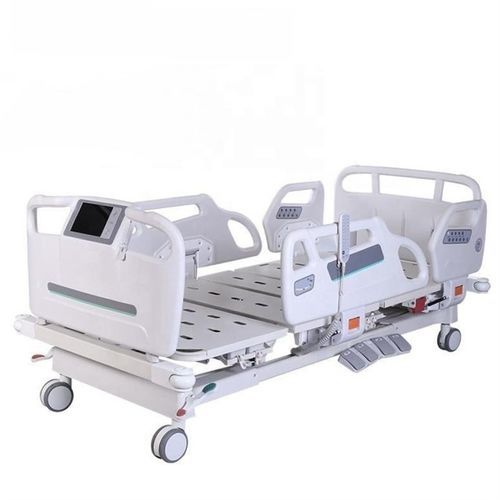

Emergency bed

intensive careelectricTrendelenburg

Short description

• Electric position functions: whole lift, back lift, leg lift, special position and anti-special position.
• One-button presets including cardiac chair and special-position presets.
• Backrest and whole-bed angle displays (includes 30° human angle).
• Electric and manual CPR mechanisms for emergency resuscitation.
• Imported 125 mm brand casters with central-side brake system.
• Four-piece HDPE guardrails with antibacterial and anti-UV treatment; guardrail height ≥ 380 mm from mattress; angle display included.
• Three operation modes: hand controller, guardrail inner/outer controller and footboard controller to reduce cross-contamination risk.

Additional information
Material: Stainless steel frame / steel / metal components
Dimensions (standard): 208×96×56 cm (88×38×22 in) — customizable
Maximum load capacity: 250 kg (550 lb)
Power: Electric actuators with built-in backup battery; hand remote controller included.

Features

• Removable ABS head and foot boards
• Four-split drop-down side rails
• Quiet omni-directional wheels with central brake
• Built-in backup battery
• Hand remote controller

Accessories

• Foldable HDPE guardrail
• Thickened ABS components for head/foot
• Silent universal wheels

Functions

• Backrest lift: 0–75° (±5°)
• Leg lift: 0–35° (±5°)
• Height adjustment: 54–94 cm (21–37 in)
• Trendelenburg: 0–12°
• Reverse Trendelenburg: 0–12°

Technical specifications

• Frame material: Stainless steel / steel / metal
• Standard dimensions: 208×96×56 cm (customizable)
• Maximum load: 250 kg
• Casters: Imported 125 mm omni-directional with central-side brake
• Guardrail: 4-piece HDPE, antibacterial and UV-resistant, height ≥ 380 mm
• Operation modes: Hand controller; guardrail inner/outer controller; footboard controller
• Resuscitation: Electric and manual CPR functions
• Power backup: Built-in battery
