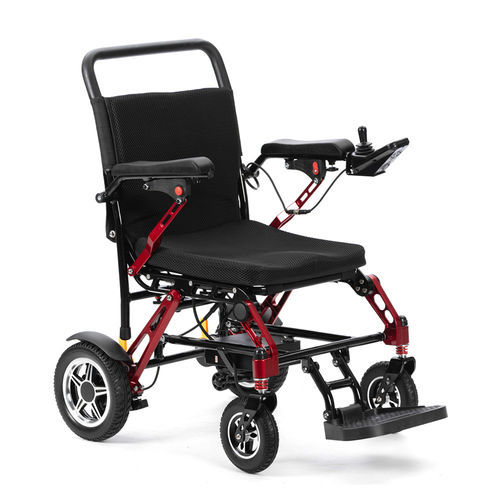

Electric wheelchair Magnesium Alloy

outdoorindoorfolding

Overview

• Foldable electric wheelchair with magnesium alloy frame
• Net weight (without battery): 16.5 kg
• 2 × 200W sine wave brushless motors for lower noise and smoother drive
• 24V 12AH lithium battery, range ≈ 20 km
• Remote control and electromagnetic braking
• Rear drive, max speed 6 km/h, load capacity 100 kg

Details
Material: Magnesium Alloy
Colors: Red, Black, Green
Unfolded size (L×W×H): 920 × 600 × 930 mm
Folded size (L×W×H): 600 × 280 × 700 mm
Net weight (without battery): 16.5 kg
Gross weight: 19 kg
Motor: 2 × 200W sine wave brushless motors
Control system (control box + joystick): Sine wave control system (lower noise & smoother control)
Battery: 24V 12AH lithium battery
Drive range: 20 km
Load capacity: 100 kg
Max speed: 6 km/h
Front wheels: 7" PU solid tires
Rear wheels: 10" PU solid tires
Maximum climbing angle: 13°
Charging time: 5–6 h
Armrest width: 460 mm
Seat width: 430 mm
Seat depth: 440 mm
Seat-to-floor height: 480 mm
Drive mode: Rear drive
Braking system: Electromagnetic brake

Specifications

• Material: Magnesium Alloy
• Available colors: Red, Black, Green
• Unfolded dimensions: 920 × 600 × 930 mm
• Folded dimensions: 600 × 280 × 700 mm
• Net weight (without battery): 16.5 kg
• Gross weight: 19 kg
• Motors: 2 × 200W sine wave brushless
• Control: Control box + joystick (sine wave)
• Battery: 24V 12AH lithium
• Range per charge: ~20 km
• Maximum load: 100 kg
• Top speed: 6 km/h
• Wheels: Front 7" PU solid, Rear 10" PU solid
• Maximum climbing: 13°
• Charging time: 5–6 hours
• Armrest width: 460 mm
• Seat width: 430 mm
• Seat depth: 440 mm
• Seat-to-floor height: 480 mm
• Drive mode: Rear drive
• Braking: Electromagnetic brake
