Hydraulic pump AHP-802-HN-SET
pistonfor liquidstwo-stage

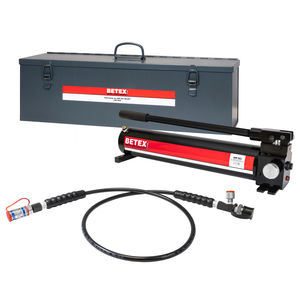

Hydraulic pump - AHP-802-HN-SET - Ewellix - piston / for liquids / two-stage
Hydraulic pump - AHP-802-HN-SET - Ewellix - piston / for liquids / two-stage
Add to favorites
Compare this product

Characteristics

Operation
hydraulic
Technology
piston
Fluid type
for liquids
Configuration
two-stage
Pressure

Max.: 1,000 bar
(14,503.7738 psi)

Min.: 20 bar
(290.0755 psi)

Description

Product overview
  • Manual two-stage aluminum hand pump AHP-802-HN-SET supplied as a complete set for use with hydraulic nuts (HYDNUT) for controlled mounting and dismounting of bearings and components.


Included components
  • Two-stage manual aluminum pump
  • Pressure gauge (manometer)
  • T-piece
  • Flexible hose
  • Couplings (quick coupling G¼ and 3/8" NPT connection on pump body)
  • Steel carrying case


Technical data (extract)
  • Maximum pressure (pmax): 1,000 bar
  • Operating pressure, 1st stage: 20 bar
  • Oil flow per stroke, 1st stage (V̇H1): 12.9 cm³
  • Oil flow per stroke, 2nd stage (V̇H2): 1.65 cm³
  • Oil reservoir volume (Vmax): 3 L
  • Usable oil quantity (Veff): 2.5 L
  • Hose connection on pump body: 3/8" NPT
  • Coupling: quick coupling G¼
  • Pump dimensions (L x W x H): 615 x 140 x 170 mm
  • Pump weight: 8.6 kg
  • Steel case dimensions (mm): 761 x 264 x 244
  • Total weight with accessories and case: 16.8 kg


Additional information
  • Brand: BETEX
  • Series: AHP (Aluminum lightweight hand pump, 2-stage)
  • Version: HN — for use with hydraulic nuts
  • Replaces: 7265782
  • Recommended with: HYDNUT..-E, HYDNUT..-E-INCH, HYDNUT..-HEAVY
  • Product ID: 2622646
  • Product page: https://medias.schaeffler.us/en/product/service/digital-and-service-solutions/hydraulic-tools-for-mounting-and-dismounting-bearings-and-components/hydraulic-pumps/manual-pumps/ahp-802-hn-set/p/2622646
