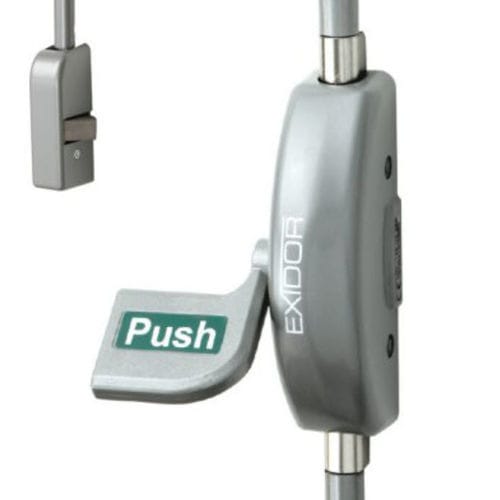

Hospital door lock Exidor 522-P

mechanical

Unit type: Emergency unit Activation: Push pad Door type: Single doorset, Rebated double doorset, active leaf Door opening: Outward Projection: 92mm from door face Mounting method: Surface mounted pad No. of locking points: 2 Bolt style: 522-P horizontal Pullman latches Durability: 200,000 cycles Max door width: 1220mm Max door mass: Up to 200kg Operation: Pushing the pad down into door face retracts the bolts/latches. Releasing the pad returns the latches to the rest position. On 502A-P, the bolts remain retracted until automatically released on closing of the door. Finish: SIL or SSE (other finishes on request) Accessories: See panic hardware accessory section for range of alternative keeps Suitable for fire doors: Timber FD120, metal FD240 Two point locking by either shoot bolts or Pullman latches Supplied with timber, aluminium or steel door keeps and fixings Keeps available for alternative frame arrangements Push pad suited to restricted access buildings Ideal for higher aesthetic applications or to suit narrow door stiles
