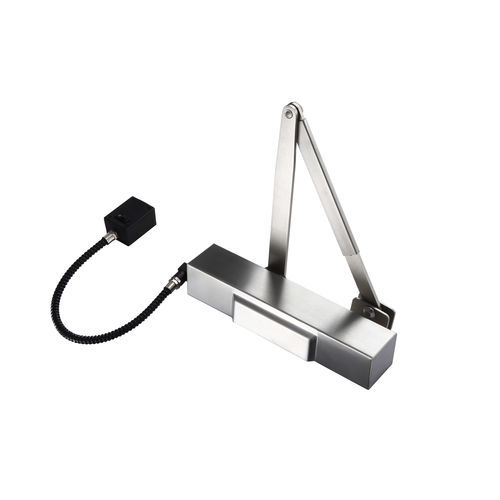

Hospital door closer Exidor 9870-SQ

laboratoryradiology room

9870-SQ hold open/swing free E-Hydraulic overhead door closer, power size 4 features both hold open and swing free options combined within the same unit. Hold open function holds the door in its open position where as swing free mode allows the door to be opened with no resistance from the closer – However, when the buildings fire alarm is activated, power is cut to the unit and the closer then shuts the door. The 9000 Series is supplied with either a stylish square cover or an elegant radius cover and has a matching adjustable arm as standard. Power size 4 Adjustable latching and sweep speed Supplied with brackets for fig 1 and fig 6 fixing Power supply units are also available Elegant square cover Backcheck - No Cover Included - true Delayed Action - false Latching Speed - true Max Closing Force - EN4 Max Door Weight (kg) - 80 Max Door Width (mm) - 1100 Ordering Codes - Please refer to product data sheet in downloads for product ordering codes Standard - Ce, Certifire, EN 1155
