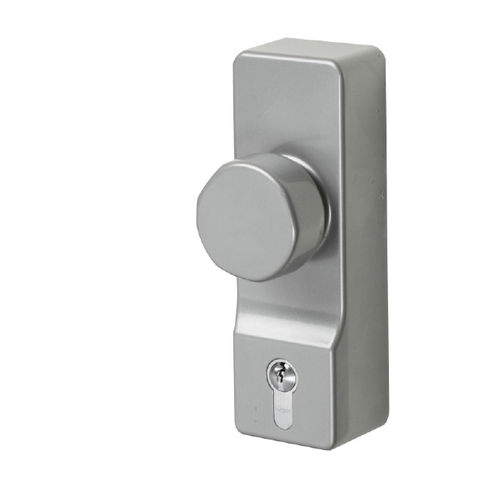

Hospital door lock Exidor 302

mechanical

Essential panic and exit hardware. Unit type: Outside access device Activation: Knob handle Door type: Single doorset, Rebated double doorset, active leaf, Plain meeting stile double doorset, either leaf Door opening: Outward Projection: 70mm from door face Mounting method: Surface-mounted Max door width: 1220mm Max door mass: Up to 200kg Operation: Rotating the knob retracts the internal bolts/latches. Releasing the knob returns the internal bolts/latches to the rest position Cylinder specification for master keying needs: 40mm single euro profile cylinder, with rear face drill and tap fixing Finish: SIL or SSE (other finishes on request) Suitable for use with: 296, 294, 294A, 285, 284, 297, 293, 293A Accessories: Additional fixings for thicker doors available on request CE marked: As an approved accessory to the internal hardware Certified 200/300 Series accessory as part of EN 1125 and EN 179 Suitable for fire doors: Timber FD60, metal FD240 Certifire approval: Yes – as an accessory to the internal hardware For gaining entry through an escape door Compact design of external hardware for use with 200 and 300 Series hardware Surface mounted on the outside of the door using concealed machine screws Bolt through fixings make it suitable steel or timber doors up to 50mm thick Locking the cylinder prevents access into the building but will not prevent escape out of the building
