According to DIN ISO 11607-2 the sealing process needs to be validated. For this purpose parameter control has been integrated in the F110 series.* This function continuously monitors the parameters temperature, pressure and speed. In case one of the parameters is incorrect, a warning message with sound alarm will be displayed and the machine will stop sealing. The monitoring of the parameters can be done in real time on a pc by means of external parameter monitoring software (included in delivery).

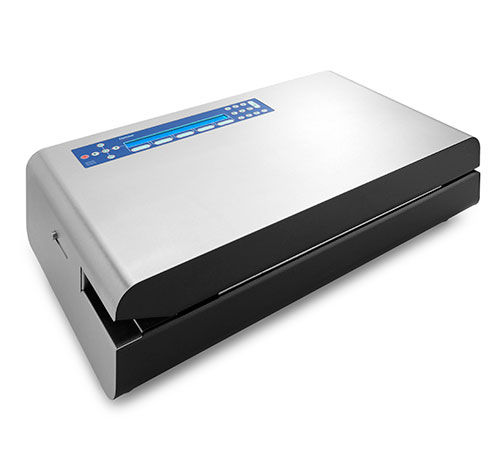

The F110 PROTEC series consists of 3 models: F110D, F110DEP-P/USB and F110DBC-P/USB.
All models are equipped with an automatic transport start, reverse transportation feature and a production counter with alarm. The F110 PROTEC models are equipped with an integrated internal printer which can print various data on the pouches. Each sealer of the F110 PROTEC series can print the packing date, expiry date and a code. Unlike the F110D, the F110DEP-P/USB can print one line of text. The F110DBC-P/USB on the other hand can print two lines of text or one line of text and a barcode.
The F110DEP-P/USB and F110DBC-P/USB have the following additional features:
Storage of 2.000 texts with 30 characters each.
Connection for external label printer to print various data on labels.
Connection to a pc to program texts. Software and cable included in delivery.
USB connection to connect a USB drive to upload the texts that have been programmed on a pc. In addition, when a USB drive is connected to the sealer, a log will be made of the parameters of each seal.
