The unit has a fixed height. Upon request it is also possible to make the pre-cleaning unit height adjustable.
The complete unit will be equipped with a water rim around the sides to prevent any spilled fluids from dripping of the unit. The back of the unit is equipped with a 100mm backsplash.

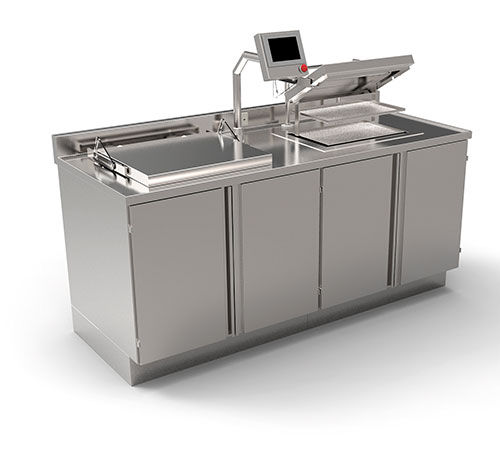

The pre-cleaning unit is standard equipped with a built-in IND5535 ultrasonic cleaning bath, which has a working capacity of 48 liters. Larger ultrasonic cleaning baths are available on request. In addition, the unit is equipped with a spraying tank.
Both tanks are fully integrated in the worktop and are both equipped with fully automatic tray lifts. The ultrasonic cleaning bath as well as the spraying tank and tray lift systems are being operated through one and the same touch-screen. The use of the touch-screen offers many advantages in comparison to a regular time-relays controlled unit due to the fact that the process times can be easily changed by everyone without having to consult a technician who has to adjust the time relays within an external section. The adjustments of important parameters with the help of technicians now belongs to the past and all staff members can operate and adjust the parameters to the requirements of the instruments which have to be processed. The ultrasonic cleaning bath is being filled and drained automatically.
The unit is equipped with a mixing system which will be placed inside the cupboard underneath the ultrasonic cleaner. This mixing system automatically mixes the water before the ultrasonic cleaning bath is being filled.
