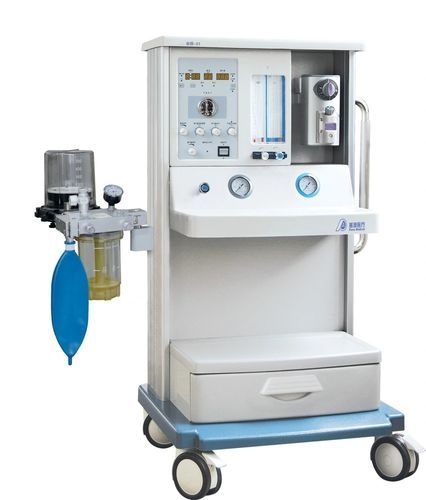

Trolley-mounted anesthesia workstation FTL-JINLING01

with ventilatorwith electronic gas mixerwith gas scavenging system

Product Introduction
The Anesthesia Machine is engineered for clinical reliability and precision, delivering stable, user-friendly anesthesia management across diverse surgical and critical care environments.

• High-resolution LED display provides clear, real-time physiological monitoring, enhancing situational awareness for the anesthesia team.
• Integrated electronic ventilator supports essential ventilation modes: A/C, IPPV, SIPPV, IMV, and SIMV, ensuring optimized lung protection and seamless support for complex patient management in both routine procedures and high-acuity cases.
• Equipped with a 4-tube precision flowmeter system (O₂ / N₂O) and a high-accuracy, temperature-compensated vaporizer (options: Enflurane, Isoflurane, Sevoflurane, or Halothane), guaranteeing consistent, predictable anesthetic agent delivery with simplified operational protocols.
• Expansive tidal volume range (50–1500 ml) accommodates adult and pediatric patient populations, making this unit suitable for general hospitals, specialized surgical centers, and critical care units.
• Constructed from durable, medical-grade materials for long service life and minimal maintenance, ensuring stable performance and a favorable total cost of ownership (TCO) in high-demand facilities.
• Dedicated manual mode is immediately accessible for emergency override.
• Modular flexibility through optional upgrades, such as integration of a patient monitor or specialized vaporizer configurations, allowing adaptation and scalability with evolving clinical requirements.

Specification Table
Feature | Standard Model | Advanced Model | Economic Model
Startup Self-Test | ✔ Supported | ✔ Supported | ⚠️ Optional or Simplified
Display Type | High-brightness LED digital display | High-brightness LED + Smart interface | Basic LED digital display
Ventilation Modes | Assist/Control, Manual, etc. | Intelligent adaptive ventilation, Assist/Control, Manual, etc. | Basic Assist/Control, Manual
Tidal Volume Range | 50–1500 mL | 50–1500 mL | 50–1000 mL (expandable optional)
I:E Ratio Range | 1:1.5 – 1:3 | 1:1 – 1:4 (wider adjustable range) | 1:1.5 – 1:3 (fixed steps)
Respiratory Rate Range | 4–40 breaths/min | 4–60 breaths/min (extended range) | 6–30 breaths/min
Gas Flow Control | O₂/N₂O high-precision flowmeters, O₂ ≥21% | O₂/N₂O/Air multi-gas control, smart ratio adjustment | O₂/N₂O basic flow control, O₂ ≥21%
Vaporizer | Dual position, auto-compensated for Sevo/Enflurane/Isoflurane | Dual position, full auto-compensation, electronic control | Single position, manual compensation, common agents
Sensor System | Differential pressure + Infrared turbine flow sensor | Multi-sensor fusion + real-time feedback | Basic differential pressure sensor
Soda Lime Canister | Rotary integrated, hand-replaceable, withstands 176°C | Same as Standard + usage monitoring | Standard canister, manual replacement
System Integration | Can connect to monitor to form workstation | Supports anesthesia workstation, VSPAC, temp control integration | Basic anesthesia function, no advanced integration
Circuit Heating/AGSS | Optional | Standard or advanced optional | Not available or external only
Smart Features | Basic self-test and calibration | Dual-level monitoring, intelligent ventilation, data analysis | None
Applicable Scenarios | General OR, general hospitals | ICU, complex surgeries, teaching hospitals | Outpatient, dental, primary care, mobile medical
Price Positioning | Mid-range | High-end | Economy

Additional Images

• High-resolution images available for detailed inspection of the product.

Key Features

• Stable, precise, and user-friendly anesthesia management
• LED display screen for real-time monitoring
• Built-in ventilator with multiple essential ventilation modes
• 4-tube flowmeters (O₂ / N₂O) and high-accuracy vaporizer (Enflurane, Isoflurane, Sevoflurane, or Halothane)
• Large tidal volume range for adult and pediatric applications
• Manual mode for emergency operation
• Optional upgrades: patient monitor, Halothane vaporizer
• Durable medical-grade materials for long service life and easy maintenance

Technical Specifications / Characteristics

• Model: FTL-JINLING01 Economic Model
• Display: Basic LED digital display
• Ventilation Modes: Basic Assist/Control, Manual
• Tidal Volume Range: 50–1000 mL (expandable optional)
• I:E Ratio Range: 1:1.5 – 1:3 (fixed steps)
• Respiratory Rate Range: 6–30 breaths/min
• Gas Flow Control: O₂/N₂O basic flow control, O₂ ≥21%
• Vaporizer: Single position, manual compensation, common agents
• Sensor System: Basic differential pressure sensor
• Soda Lime Canister: Standard canister, manual replacement
• System Integration: Basic anesthesia function, no advanced integration
• Circuit Heating/AGSS: Not available or external only
• Smart Features: None
• Applicable Scenarios: Outpatient, dental, primary care, mobile medical
• Price Positioning: Economy
