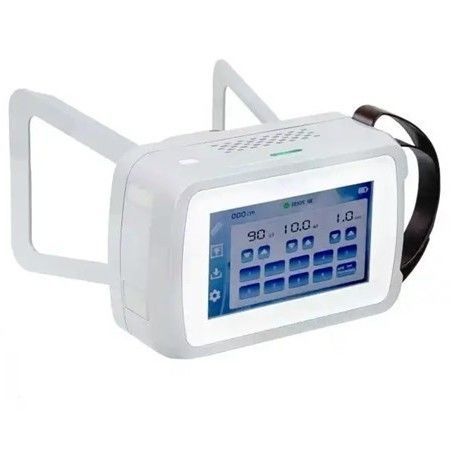

Multipurpose radiography X-ray generator FTLBW9010

portablewith control panelwith power supply

Overview
The FTLBW9010 is an advanced handheld X-ray unit engineered for mobile imaging in clinical, emergency and veterinary settings, providing high-performance imaging without fixed installations.

Key features

• High power output (450W / 900W options)
• Enhanced cooling capability for rapid sequential imaging
• Ergonomic handheld design for professional portability
• Versatile use in human and veterinary radiology
• Low radiation design with high-resolution image capability
• Battery operation for full mobility

Technical specifications

• Product model: FTLBW905 (reference) / FTLBW9010
• Power: 450W / 900W
• kV range: 40–90 kV
• mA range: 0.5–5 mA / 1–10 mA
• X-ray exposure time: 0.1–2 s
• Cooling time: Thirty times / Sixty times the exposure time
• Focal spot size: 0.8 mm
• Anode heat capacity: 7000 J
• Total filtration: 1.8 mm Al
• Power supply: Battery
• Remote exposure interface: RJ11
• Image processing: Optional
• Operating temperature: -10°C to 40°C
• Dimensions: 225 × 155 × 263 mm
• Weight: 3.5 kg / 3.8 kg

Applications

• On-site clinical radiography
• Emergency and trauma imaging
• Veterinary field radiography
• Mobile screening and outreach programs
