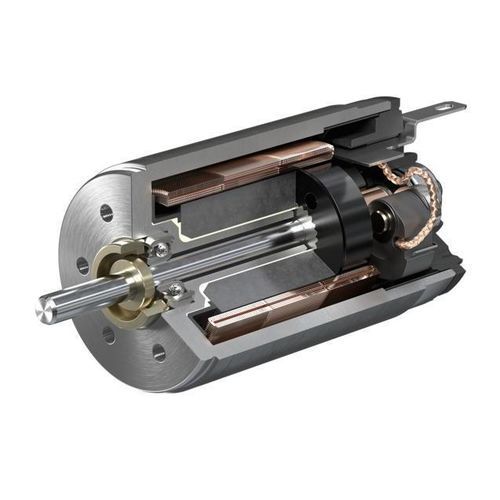

Medical industry motor GXR

DC

Product Details The motors of the GXR family offer outstanding robustness, durability and performance. Unlike the structurally identical SXR family, the GXR motors are graphite-commutated and therefore suitable for applications that require particularly high current and performance. They offer flexible voltage variants from 4.5 V to 24 V and are available in various bearing configurations. Thanks to the hexagonal winding with high copper filling factor and optimized straight section, the DC-motors are temperature-stable and thus ensure increased efficiency. The GXR drives are also characterized by a high degree of flexibility due to their customizability – from modifications to the front and rear shafts to options for use in vacuum or high-temperature environments. They can be combined with many different products from the FAULHABER range, including diameter compliant gearheads or encoders with and without line driver. - High performance/volume ratio thanks to new coil technology - Powerful rare-earth magnet - High efficiency solution - No cogging torque, highly dynamic performance, precise speed control - Fully diameter conform solution available Key Features - Diameter: 14 ... 16 mm - Length: 27 ... 37 mm - Nominal voltage: 4.5 ... 24 V - Speed up to: 15000 min⁻¹ - Torque up to: 6.91 mNm - Continuous output up to: 9.31 W Technical Specifications / Characteristics - Commutation: Graphite - Voltage range: 4.5 V to 24 V - Diameter: 14 mm to 16 mm - Length: 27 mm to 37 mm - Speed: up to 15000 min⁻¹ - Torque: up to 6.91 mNm - Continuous output: up to 9.31 W - Temperature-stable, high efficiency - Customizable for vacuum or high-temperature environments - Compatible with FAULHABER gearheads and encoders
