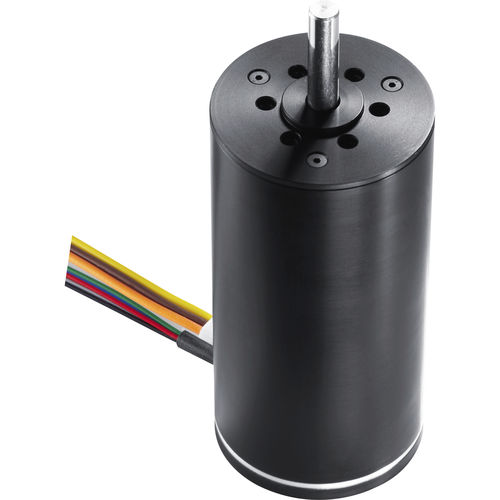

Medical industry servomotor 4490H0 seriesbrushlessDC
Add to favorites
Compare this product
Characteristics
- Applications
- medical industry
- Operational mode
- brushless
- Current type
- DC
- Rotational speed
9,700 rad.min-1, 10,400 rad.min-1, 10,800 rad.min-1
(1,543.8 rpm, 1,655.21 rpm, 1,718.87 rpm)
Description
2 Pole Technology
Nominal voltage: - 24 ... 48 V
Torque up to (max.): - 148 mNm
No-load speed: - 10.800 min⁻¹
Stall torque: - 2.978 mNm
Diameter: - 44 mm
Length: - 90 mm
Catalogs
Drive Systems | 2020-2021
656 Pages
