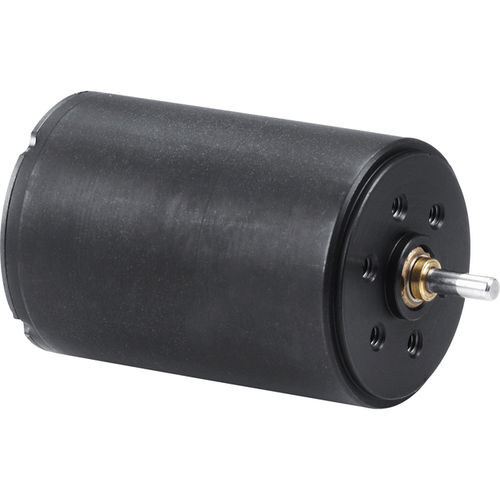

DC micromotor 2232U0 seriesmedicalelectric
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Operation
- electric, DC
- Speed
710 rad.min-1, 7,400 rad.min-1
(113 rpm, 1,177.7 rpm)- Length
32.2 mm
(1.3 in)- Head diameter
22 mm
(0.9 in)
Description
Precious Metal Commutation
Nominal voltage: - 6 ... 24 V
Torque up to (max.): - 10 mNm
No-load speed: - 7.400 min⁻¹
Stall torque: - 59,2 mNm
Diameter: - 22 mm
Length: - 32,2 mm
