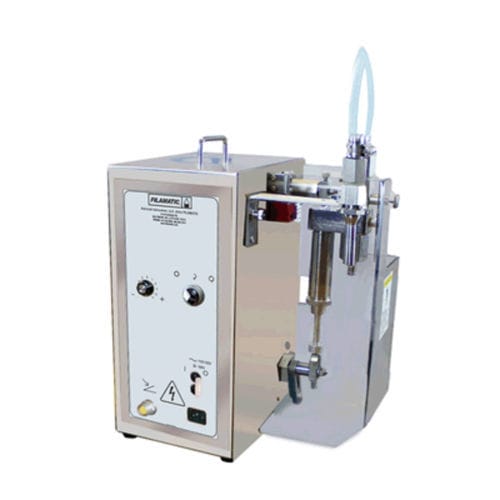

Semi-automatic filler AB-8

volumetricpistoncompact

Capable of dispensing wide range of fill volumes (.05ml-260ml) Models available for use in hazardous environments Compact design, stainless steel construction. Simple to set-up, operate, clean and changeover 110V operation, compressed air not required for most applications. The FILAMATIC® AB-8 Series Benchtop is a semi-automatic medium duty filler, ideal for repetitive dispensing of liquids from water-thin to semi-viscous, molten products, and products with small particulates. The AB-8 can accommodate fill volumes ranging from 1ml-to 260ml with the ability to mix and match pumps and nozzles for optimal versatility and flexibility. This single nozzle filling machine incorporates a variable speed electrical gearmotor drive, which turns the crankshaft that drives a volumetric piston pump known as a “Filling Unit”. The Filling Units are accessories offered to dispense a wide range of liquids and are made from either glass or stainless steel. Designs are available for OEM Applications as well as CE Mark certified, and air operated models for hazardous environments. The Model AB-8 delivers a fill speed at a max rate of 23 RPM or 23 bottles per minute theoretically. Ideal for fill volumes from 3ml-130ml. When filling semi viscous liquids such as MCT oils, lotions, essential oils etc. FILAMATIC recommends a 130ml capacity pump with a fill volume range of 13ml-130ml. This recommendation is based on the torque the AB-8 delivers. The 260ml pump is recommended for aqueous liquids.
