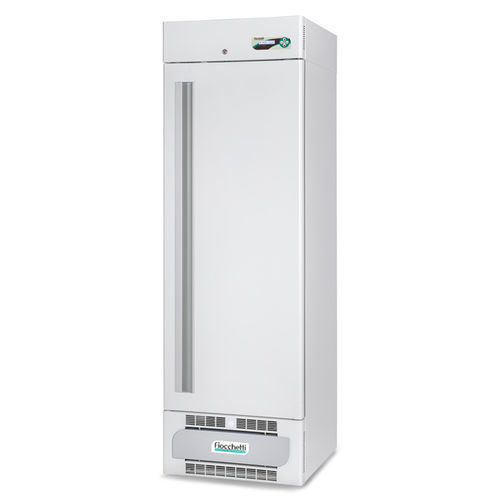

Laboratory refrigerator LABOR 400 ECT-F PLUS

cabinet1-doorwith forced air cooling

Overview
Our best seller medium size medical refrigerator, column type, for general laboratory use, solid door type and positive temperature range, developed for laboratories, hospitals and private clinics.

Main features

• Solid door with improved thermal performance
• Ergonomic aluminium handle for safe grip
• Magnetic gasket sealing on all four sides
• Automatic lock with return spring and door stop at 90°; reversible opening side
• Adjustable internal compartments to enhance product storage

Structure and refrigeration
Inner dimensions: 50 x 48,5 x 140 cm
Nominal capacity: 400 l (14,12 cu ft)
Net capacity: 347 l (12,26 cu ft)
Insulation type: PUF injected at very high density (43 kg/m3), CFC-free, water-foam based injection
Insulation thickness: 70 mm back / 50 mm sides
Structure: Monocoque type, plasticized atoxic white steel interior/exterior with special antibacterial-type film or inner 18/10 Aisi 304 stainless steel; inner bottom rounded corners; Nr 4 unidirectional rollers included and nr 2 front feet for maximum stability
Interior lighting: Full LED along whole chamber length
Refrigeration type: Professional ventilated
Defrost type: Automatic, adaptive, with vaporization of condensate water

Controller — ECT-F PLUS microprocessor
Display resolution: 0.1°C; accuracy ± 0.3°C; backlit 16-character alphanumeric LCD display customizable in 5 languages; keyboard with 4 membrane keys
Back-up battery for power failure alarm up to 48 hours
Minimum/maximum temperature recording and recording of 12 events (resettable by user)
Potential-free contact for remote alarms (dry contact)
Configurable/customizable display with four reading modes
Keyboard: 4 membrane keys; user-configurable password to protect switching on/off and set-point changes
Alarms: multiple temperature alarms including high-temperature alarm due to power failure; dry contact for remote alerts

Technical data
Refrigerant gas type: R290
Energy consumption: 0,7 kWh/24h
Power absorption/current: kW 0,17 / Amp 1
Inrush current: Amp 3
Noise level: <45 dBA
Heat rejection EN 12900: W 30
Shelves max nr.: 7
Wire shelves dimensions: cm 46 x 45
Drawers max nr.: 14
Inner dimensions of drawers with dividers (each compartment): cm 11 x 40 x 7,5 (3)
Inner dimensions of drawers without dividers (LxPxH): cm 39 x 40 x 7,5
Stainless steel wire drawer max nr.: 14
Inner dimensions of stainless steel wire drawer (LxPxH): cm 43,5 x 40,5 x 6,2

Accessories available on request

• Lock with key
• External terminal board with dry contacts for ECT-F PLUS
• Antifreezing safety device
• DIN 13277 conformity (for ECT-F PLUS)
• Temperature chart recorder
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Stainless steel wire rack cm 14 x 42 x 15 H (max. 3 on each shelf)
• Pull-out aluminum drawer with dividers for models 170-200-250-400
• Pull-out aluminum drawer without dividers for models 170-200-250-400
• Plexiglass front for drawers
• Extractible stainless steel wire drawer for models 170-200-250-400
• Lockable drawer for narcotics
• Wheels kit (2 with brakes) for mod. 170-200-250-400
• Internal power socket
• Access port mm 35 with stopper
• Port hole mm 15
• Humidity sensor
• PT100 Probe (free contacts)
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Wooden crate package

Product identifiers & highlights
Series: LABOR - ECT-F PLUS
Code on page: Code LAB0403
Temperature range: +2 / +15°C
Capacity (net): 347 lt (12.25 cu ft)
External dimensions (WxDxH): 60 x 64,5 x 196 cm

Caractéristiques / spécifications techniques

• Model: LABOR 400 ECT-F PLUS
• Code: LAB0403
• Series: LABOR - ECT-F PLUS
• Temperature range: +2 / +15°C
• Nominal capacity: 400 l (14,12 cu ft)
• Net capacity: 347 l (12,26 cu ft)
• External dimensions (WxDxH): 60 x 64,5 x 196 cm
• Inner dimensions: 50 x 48,5 x 140 cm
• Insulation: PUF injected at 43 kg/m3; CFC-free; water-foam based injection
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Structure: Monocoque; plasticized white steel interior/exterior with antibacterial film or 18/10 Aisi 304 stainless steel interior
• Interior lighting: Full LED
• Refrigeration: Professional ventilated
• Defrost: Automatic, adaptive with condensate vaporization
• Controller: ECT-F PLUS microprocessor — display 0.1°C resolution, ±0.3°C accuracy, alphanumeric LCD, 4 membrane keys, battery backup for 48 h alarms, min/max recording, dry contact for remote alarms
• Refrigerant: R290
• Energy consumption: 0,7 kWh/24h
• Power absorption: 0,17 kW / Amp 1
• Inrush current: Amp 3
• Noise level: <45 dBA
• Heat rejection (EN 12900): 30 W
• Shelves: up to 7 (wire shelves dimensions cm 46x45)
• Drawers: up to 14 (drawer inner dimensions with dividers cm 11x40x7,5; without dividers cm 39x40x7,5)
• Stainless steel wire drawer inner dimensions: cm 43,5 x 40,5 x 6,2
• Mobility & stability: 4 unidirectional rollers + 2 front feet
