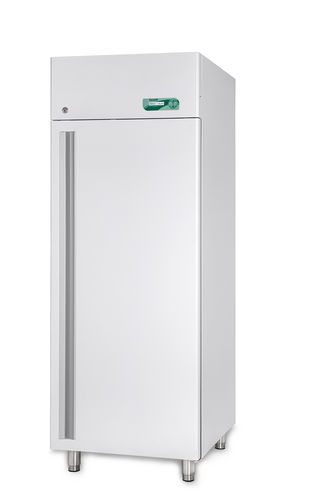

Laboratory refrigerator TER 700 ECT-F

upright1-doorwith forced air cooling

Brief description
Large-capacity thermostatted refrigerator for special applications requiring operating temperatures from +15 to +30°C, available with solid or glass door. Suitable for laboratories, research centers and specific scientific activities.

Main overview

• Temperature range: +15 / +30°C
• Net capacity: 620 L (21.89 cu ft)
• External dimensions (W×D×H): 75 × 82.5 × 210 cm
• Electronics type: ECT-F

Structure and refrigeration

• Internal dimensions: 60 × 68 × 150 cm
• Nominal capacity: 700 L (24.72 cu ft)
• Net capacity: 620 L (21.89 cu ft)
• Insulation: injected polyurethane foam at high density (43 kg/m3), CFC-free with eco-friendly water injection
• Insulation thickness: 75 mm
• Construction: monocoque in white plastic-coated non-toxic steel inside/outside with certified antibacterial treatment, alternatively interior in AISI 304 18/10 stainless steel; rounded corners and basin-shaped floor
• 4 height-adjustable feet for stability
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost type: automatic adaptive with condensate evaporation

Door and closure

• Door available solid or tempered glass according to IEC 61010-1, anti-condensation and low-emissivity glass
• Ergonomic aluminium handle
• Magnetic gasket on four sides
• Automatic return spring closing with 90° door stop; opening direction customizable

ECT-F electronic controller

• Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages
• Display configurable in four reading modes
• Keyboard: 4 membrane keys; password protection for power on/off and set-point changes
• Alarms: three types of temperature alarms and event log for 12 events

Technical data

• Refrigerant type: R290
• Consumption: 1 kWh/24h
• Power / Current: 0.12 kW / 0.7 A
• Starting inrush current: 2.5 A
• Noise: <50 dBA
• Heat emission EN 12900: 41 W
• Max no. shelves: 7
• Shelf size: 56 × 65 cm
• Max no. drawers: 14
• Internal drawer size with dividers (W×D×H) (per compartments): 15 × 60 × 7.5 cm (3)
• Internal drawer size without dividers (W×D×H): 49 × 60 × 7.5 cm
• Max no. wire baskets: 7
• Wire basket internal size (W×D×H): 53.8 × 60.5 × 14.8 cm
• Max no. wire drawers: 14
• Wire drawer internal size (W×D×H): 53.8 × 60.5 × 6.2 cm

Customizations and accessories available on request

• Lock with key
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Glass door
• Shelf for models 700–1500
• Stainless steel shelf for models 700–1500
• Perforated stainless steel shelf for models 700–1500
• Aluminium sliding drawer with dividers for models 700–1500
• Aluminium sliding drawer without dividers for models 700–1500
• Wire sliding drawer on guides for models 700–1500
• Wire sliding basket
• Plexiglass front riser for drawer
• Wire rack 14 × 42 × 15 cm (max 3 per shelf)
• Wire rack 14 × 50 × 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for model 700
• Internal power outlet
• Cable port Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with potential-free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packing

Characteristics / technical specifications

• Model: TER 700 ECT-F
• Operating temperature range: +15 ÷ +30°C
• Net capacity: 620 L
• Gross / nominal capacity: 700 L
• External dimensions (W×D×H): 75 × 82.5 × 210 cm
• Internal dimensions (W×D×H): 60 × 68 × 150 cm
• Materials: interior in white plastic-coated non-toxic steel or AISI 304 18/10 stainless steel
• Insulation: injected polyurethane 43 kg/m3, thickness 75 mm
• Refrigerant: R290
• Energy consumption: 1 kWh/24h
• Electrical power: 0.12 kW (current 0.7 A)
• Starting inrush: 2.5 A
• Noise: <50 dBA
• Internal lighting: full-height LED
• Controller: ECT-F, 0.1°C resolution, accuracy ±0.3°C, 16-character LCD, 4 membrane keys, alarms and event logging
• Accessories: shelves, drawers, baskets, probes, internal outlets, wheel kit, stabilizer, glass door, etc. (on request)
