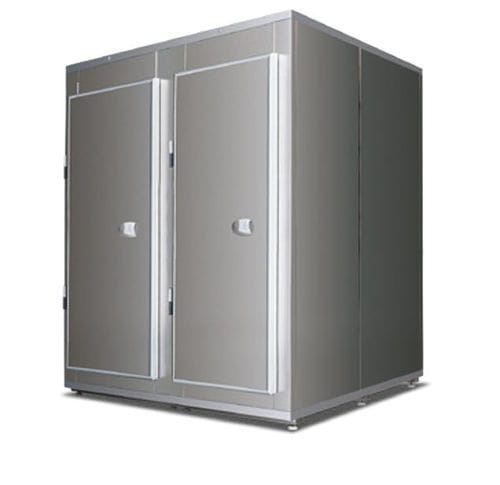

Mortuary stretcher refrigerated mortuary cabinet CAM040802

8-bodyfront-loadingmodular

Presentation
Modular mortuary cold room for the storage of 8 bodies on 4 levels. Product supplied disassembled with panels, structure and monoblock to be installed on site. Available at positive temperature (+2 / +8 °C) for short-term storage or at negative temperature (-10 / -20 °C) for long-term storage.

Extended description
The mortuary cell is modular and to be assembled on site, with internal and external white plastified steel structure or, on request, internal and external stainless steel. It includes a thermostat with main switch and alarms, temperature setting with 0.1 °C resolution, internal lighting, automatic evaporation of condensate and a floor drain. The cells are supplied with rollers for insertion/extraction of the stretchers and with AISI 304 stainless-steel stretchers. Additional accessories (DMLP UNIT, hydraulic or electric roller trolleys, supplementary basin, crate packaging) are available on request.

Main features

• Module for 8 bodies on 4 levels with 2 doors (with lock).
• Positive temperature version (+2 / +8 °C) or negative temperature version (-10 / -20 °C).
• Modular removable structure, to be assembled on site (panels and monoblock).
• Internal and external structure in white plastified steel; stainless steel available on request.
• Thermostat with temperature setting to 0.1 °C and integrated alarms.
• Internal lighting and floor drain; automatic evaporation of condensate water.

Accessories available on request

• DMLP DIGITAL MONITOR (DMLP UNIT)
• DMLP PRINTER
• Power supply 220V/1~/60Hz
• Supplementary stainless-steel basin
• Hydraulic roller trolley H cm 38.5 - 215
• Electric hydraulic roller trolley H cm 38.5 - 201.5
• Crate packaging

Additional notes
The cells are supplied disassembled with panels, structure and monoblock to be installed on site. Configurations with modules for 1, 2, 3 or 4 bodies up to 12 and with different level arrangements and door types (large doors or single-body doors) are available.
