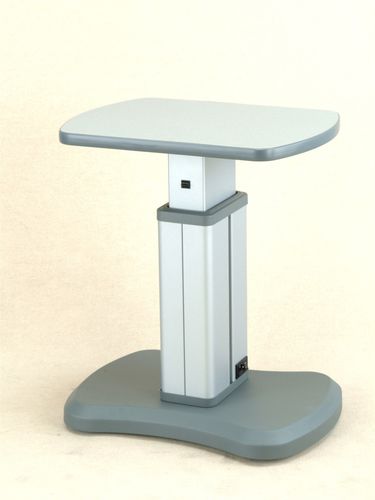

Electric ophthalmic instrument table Hercules Steel Base

height-adjustableon casters

Ophthalmic table with electric height adjustment, operated by a powerful and silent actuator. The column has a telescopic movement based on an efficient sliding mechanism, developed by F.I.S.O. and assisted by 12 ball bearings. Hercules with Steel Base is provided with a sturdy base made of ribbed and reinforced steel, equipped with two fixed bracket wheels and two feet or, optionally, with four pivoting wheels, and complete with a gray thermoformed cover, which enables to mount the column in either central or lateral position. Hercules with Steel Base can be equipped with a wide range of table tops, fixed or sliding, for one or two or three instruments. Features: Table with electric height adjustment, equipped with a powerful and silent actuator having 150 kg lifting force and 20 cm stroke, operated by a toggle switch located on the column and, optionally, also by either an additional manual or pedal remote control, or an additional control panel to be fixed under the table top. Base made of ribbed and reinforced steel, equipped with two fixed bracket wheels and two feet or, optionally, with four pivoting wheels, and complete with a gray thermoformed cover. Column in either lateral or central position. Height of table (without table top): 73-93 cm or, optionally, 63-83 cm. Two 230V (or 110-120V) sockets for instruments power supply, present at the top of column lateral sides. Versions at 230V 50/60Hz or 110-120V 50/60Hz.
