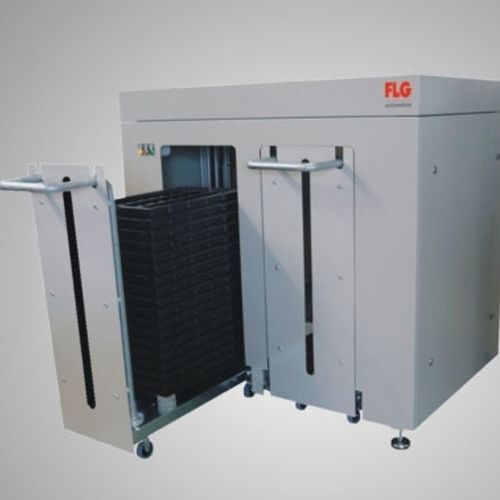

Handling palletizer VARIO Line

automatictrayfor the pharmaceutical industry

FLG’s latest palletizer is the VARIO Line. This system has been specially developed for customers who already have unloading/loading handling systems or a robot for product/workpiece handling. In such cases, the VARIO Line acts as the ideal supplement, e.g. for the infeed of load carriers at a handling system for injection molding machines. Thanks to its standardized interface, VARIO Line offers optimum support for your production in the area of load carrier supply. The functions and the setup of the VARIO Line are very similar to that of the SLIM Line. The VARIO Line is ideal for use in the field of medical technology, the pharmaceutical, cosmetic, automotive, consumer goods, electrical and plastic industry, etc. Dimensions (L x W x H) - 1.200 x 1.000 x 1.300 mm Tray size - 200 x 200 bis 400 x 600 mm Tray weight - Up to 35 kg Tray stacking height - Max. 1,000 mm Tray feed - Conveyor technology or transport trolley Drive - servomotorisch Clock time handling - Approx. 2.5 sec. (single picking) Tray changing time - > 3 sec. Control Menu - Siemens S7 (standard) Siemens IPC, Beckhoff IPC
