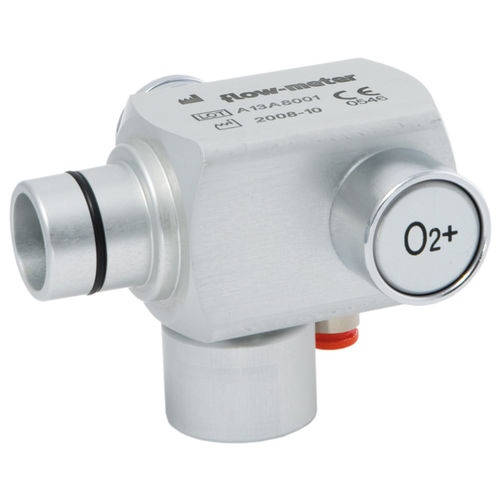

Oxygen supply unit O2+

The O2+ flush device is suitable for a quick oxygen supply directly at the mixed gases outlet at the end of an anesthesia circuit. Made of anodized aluminum, it is equipped with an anesthetic mixture inlet connection, an oxygen enriched mixture outlet connection, an O2 feeding connection and a supply button. Different constructions can be made on request. TECH INFO Sizes (LxWxH) 93x63x80 mm Weight 0.34 Kg Mixed gases iniet connection conical connection 23 mm M., ISO DIN 5356/1 Mixed gases outlet connection conical connection 23 mm F., ISO DIN 5356/1 Feeding 3.5 - 5 bar ± 20% O2 feeding connection automatic type for Ø 6 mm PA hose O2 quick supply when pushed it can supply more than 45 L/min. O2 (at 3.5 bar)
