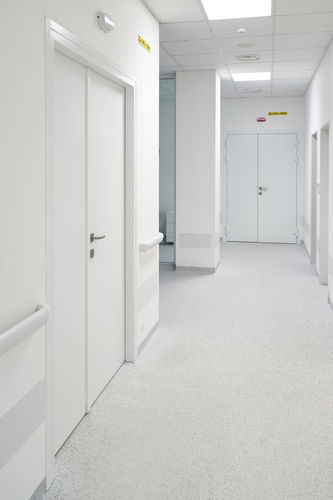

Protection door 104.08

shieldedfor radiology servicesswing

Together with the casing, the metal X-ray door represents one of the basic elements to construct clean workplaces and areas with protection against X-radiation. The door is of the sandwich type. The facing of the door leaf consists of a molded tile produced by precision molding. Reinforcements from galvanized steel sheet are glued-in along the perimeter of the facing in order to increase the rigidity of the door leaf, the mounting of the hinge and the lock. Standardly, the filler is mineral wool with an auxiliary HPS board and a shielding lead insert, which is supplied in thicknesses of 0.4 mm ÷ 3 mm. Shielded casing with protection against X-rays is also part of the door. Swing direction left right Finish single wing double wing Door dimensions width - height 1300 mm - 2010 mm 1500 mm - 2010 mm 700 mm - 2010 mm 900 mm - 2010 mm Thickness of shielding lead insert 1 mm 1.5 mm 2 mm 3 mm Glazing usual glazing 400x920 solid without glazing atypical Hinge type atypical Dr. Hahn hinges, RAL 9016 In the case of a different hue of the casing, the hinge is automatically of the same hue as the casing.Atypical finish - the customer requires a different hue than the casing - according to RAL colour standard. Type of door control automatic operator atypical manual door closer
