Operating room laminar flow module 108.02

ceiling

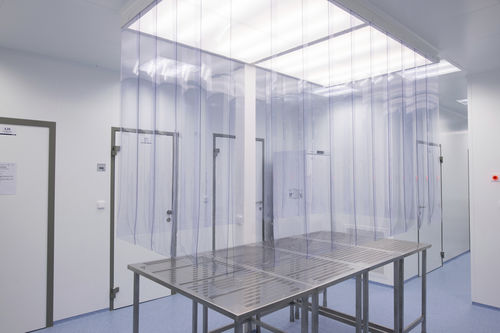

Laminar fields are used to direct incoming air from PUROFIL filtration adapters. The casing of the laminarizator is attached to the filtration adapters which form laminar fields in the lightweight metal suspended ceiling. A laminar field may consist of filtration adapters only or combined with light fixtures and tiles. If necessary, the facing can be designed for laminar fields of different sizes. Flexible or solid screens can be attached to the facing along the perimeter of the laminar field, with standard or antistatic design. Laminar fields can be set next to each other. Laminar field of PUROFIL adapters Number of laminar flow fields layout must be documented in a drawing Number of PUROFIL filtration adapters in a laminar field -for adapters with filter 570x570 mm, layout must be documented in a drawing -for adapters with filter 1180x1180 mm, layout must be documented in a drawing -for adapters with filter 1180x555 mm, layout must be documented in a drawing Height of laminar field facing -150 mm -175 mm -200 mm -225 mm -150, 175, 200, 225 - facing height in mm Outlet design laminarizator - standard perforated metal sheet Lighting - only for the laminarizator version -without lighting -with fluorescent lighting Shape of laminar flow field -L-shaped array – shape and screens must be documented in a drawing -rectangle in LK consisting of N x M ceiling panels (O2x1 ÷ O4x3, n=max.4, m=max.3) Locations of screen holders (except for L-shaped brackets) -screens at side, front, side side -screens along the whole perimeter of the laminar field -screens at front, side, rear side
