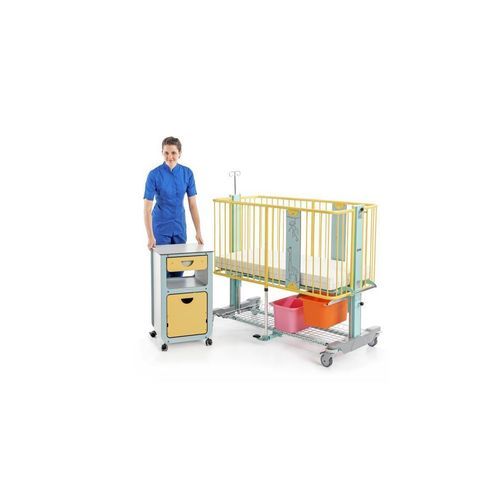

Hospital bed Sparrow

medicalmanualpediatric

Overview
The SPARROW pediatric hospital bed is designed for medical facilities treating children. It combines secure side‑rail operation, ergonomic access for caregivers and child‑friendly decorative options to improve patient comfort and ward atmosphere.

Safety
SPARROW complies with pediatric medical standards. Side rails operate via foot levers and lock at the side to prevent accidental lowering. The rail construction ensures controlled movement and secure patient containment.

Caregiver ergonomics
The bed platform reaches up to 850 mm at its highest position to support ergonomic care for staff of different heights. Height adjustment is manual and secured by a locking latch. The bed design and rail arrangement facilitate improved access to the patient for routine care and interventions.

Child‑friendly design
Decorative HPL inserts and a wide palette of colours and patterns (animals, nature themes, colourful motifs) are available to make the environment more welcoming for children and reduce stress during hospitalization.

Key features at a glance

• Manual height adjustment secured with locking latch
• Trendelenburg and Reverse‑Trendelenburg positions
• Side rails operated by foot levers with side locks
• 4 castors with individual brakes
• 4 plastic bumpers for wall protection
• 2 sockets for IV pole

Customization options for SPARROW

• Decorative motifs: HPL inserts with child‑friendly patterns (animals, nature themes, colourful designs)
• Colour options: Powder‑coated metal parts and HPL insert colours to match facility aesthetics
• Bed platform: Metal mesh or durable HPL boards (optional ventilation holes); available in 1‑ or 2‑section variants with gas‑spring backrest adjustment

Available accessories

• Pediatric medical mattresses
• IV pole
• Wire basket with plastic containers
• Decorative HPL inserts
• ABS base cover

Technical specifications

• Model name: SPARROW
• Side rails: foot‑lever operation with side locks
• Height adjustment: manual, locking latch; bed platform up to 850 mm (highest position)
• Positions: Trendelenburg and Reverse‑Trendelenburg
• Backrest: gas‑spring adjustment (on 1‑ or 2‑section platform variants)
• Platform options: metal mesh or HPL boards (optional ventilation holes)
• Castors: 4 castors with individual brakes
• Protection: 4 plastic bumpers for wall protection
• IV fittings: 2 sockets for IV pole
• Customization: decorative HPL inserts and powder‑coat colour options for metal parts
• Accessories available: pediatric mattresses, IV pole, wire basket with containers, decorative HPL inserts, ABS base cover
