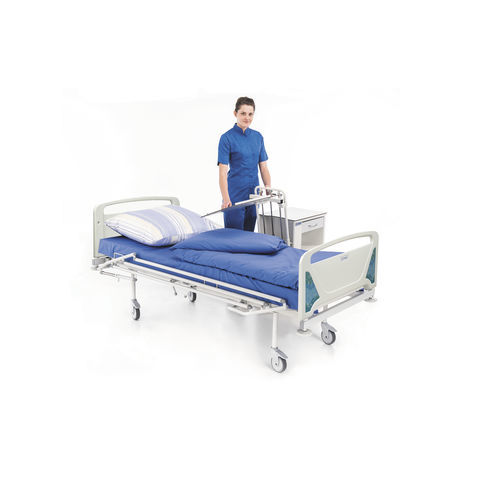

Hospital bed Condor

manualfixed-heighton casters

Description
The CONDOR hospital bed combines a durable, time-tested construction with practical functionality designed for everyday clinical use. It is intended as a basic bed for general wards, providing patient comfort and straightforward operation for clinical staff. The inner frame design enhances durability while keeping maintenance requirements low.

Features

• Easy for caregivers: Manual adjustment via levers with light-handling mechanisms positioned for intuitive access, allowing caregivers to operate functions quickly and reliably.
• Durable construction: Steel frame with powder coating resistant to damage, UV and disinfectants. Robust inner frame design minimizes maintenance over the product lifecycle.
• Multiple versions: Available with 2-, 3- or 4-section mattress platforms. Choice of metal mesh or HPL board platforms depending on hygiene and durability needs.

Key features at a glance

• Fixed platform height: 500 mm
• Backrest adjustment range: 0–70°
• Thigh segment adjustment (4-section platform): 0–40°
• Shank segment adjustment (4-section platform): 0–20°
• Easily removable head and footboards
• 4 castors with individual brakes (125 mm diameter)
• Plastic bumpers for wall protection
• Mattress holders included
• 4 accessory sockets for additional equipment
• Bed segments filled with wire mesh (HPL option for backrest)
• Maximum load capacity (safe working load): 230 kg
• Manual adjustment via levers with light-handling mechanisms

Customization options for CONDOR

• Platform sections: 2-, 3- or 4-section mattress platform configurations
• Metal mesh segments: Standard wire mesh filling for hygiene and ventilation
• HPL board option: Backrest segment filled with HPL board for enhanced durability and easy cleaning
• Side rails: Optional 3/4 bed-length side rails for patient safety
• Color options: Various colors available for plastic inserts, powder coating, or stainless steel head/footboards

Available accessories for CONDOR

• Patient lifting pole
• Adjustable IV pole
• Chart holder
• Pull-out linen shelf
• Bed extension
• FOR.REST series mattresses
• 3/4 bed-length side rails

Technical specifications

• Model name: CONDOR
• Frame: Steel frame with powder coating resistant to damage, UV and disinfectants
• Platform height: fixed at 500 mm
• Platform configuration: available in 2-, 3- or 4-section versions
• Backrest adjustment range: 0–70°
• Thigh segment adjustment (4-section platform): 0–40°
• Shank segment adjustment (4-section platform): 0–20°
• Bed segments filling: wire mesh (option for HPL board on backrest segment)
• Head and footboards: easily removable
• Castors: 4 castors with individual brakes, 125 mm diameter
• Mattress holders: included
• Accessory sockets: 4 sockets for additional equipment
• Wall protection: plastic bumpers
• Maximum load capacity (safe working load): 230 kg
• Adjustment type: manual via levers with light-handling mechanisms
