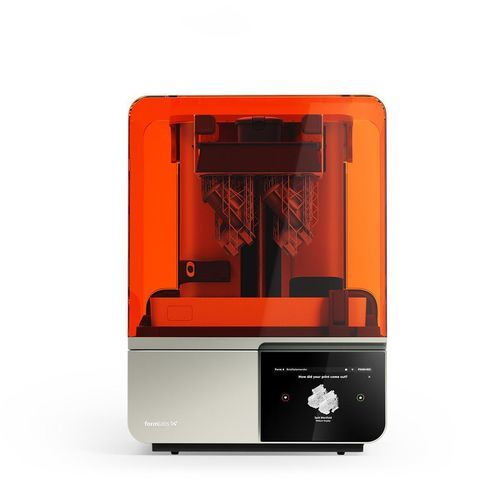

Medical 3D printer Form 4

vat photopolymerizationSLAdesktop

Overview
Form 4 is a fast masked SLA (MSLA) 3D printer that pairs a broad materials library with a precision print engine. It is designed for professional prototyping and low-volume production workflows, providing rapid cycle times, consistent part accuracy and integrated software tools.

Key benefits

• FAST: Most prints complete in under 2 hours (80th percentile at 53 mm height, 100 µm layer thickness).
• MATERIALS FLEXIBILITY: Supports 23 Formlabs materials and compatible 405 nm third‑party resins via Open Material Mode.
• SIMPLE WORKFLOW: PreForm and Dashboard streamline print preparation and remote monitoring; typical operator onboarding ≈15 minutes.
• REPEATABLE RESULTS: High success rates for professional workflows and predictable dimensional accuracy.
• INTEGRATED MONITORING: Built-in 5 MP camera for timelapses, print history and remote checks (can be disabled or removed).

Summary description
The Form 4 uses Low Force Display (LFD) technology — a backlight unit with high-power LEDs and collimating optics to cure resin quickly and uniformly across the build platform. The system is compatible with a wide range of engineering, elastomeric, castable and specialty resins and integrates with PreForm and Dashboard for preparation and fleet management.

Tech specs

• Print technology: SLA (Masked Stereolithography, MSLA)
• Build volume (W × D × H): 20.0 × 12.5 × 21.0 cm / 7.9 × 4.9 × 8.3 in — 5.25 L
• Build area: 250 cm²
• Maximum print speed: up to 100 mm/hour (3.9 in/hour)
• Maximum part length: 27.3 cm (10.7 in)
• Layer thickness: 25–200 µm
• Pixel size: 50 µm with pre‑tuned anti‑aliasing
• Dimensional accuracy: XY tolerances ±0.15%
• Camera: integrated 2592 × 1944 (5 MP) for remote monitoring and timelapses
• Software: PreForm (print preparation) and Dashboard (remote monitoring & management)

Technical specifications

• Model: Form 4
• Materials supported: 23 Formlabs materials (rigid, tough, general-purpose, flame-retardant, silicone, elastic, ceramic, castable, etc.) and compatible third‑party 405 nm resins via Open Material Mode
• Typical print time: most jobs under 2 hours (80th percentile at 53 mm height, 100 µm)
• Post-processing: requires washing (IPA or resin washing solution) and UV curing; compatible with Form Wash and Form Cure
• Intended applications: rapid prototyping, production parts, manufacturing aids, end-use components across engineering, automotive, aerospace, medical and education
