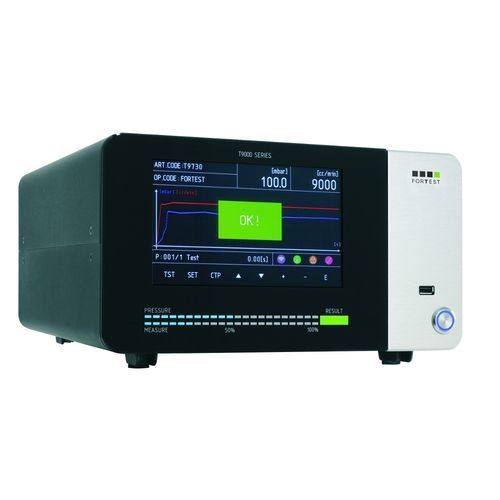

Control tester T9740

pressureloadflow

“RFO” technology is the latest evolution in continuous capacity measurement instrumentation, specifically for applications with high variability of flow values and the need for very high adjustment of the pressure, to compensate those different load losses. Typical applications include leak testing of boiler gas-tight chambers, car, tractor or lorry cabs, chimney flues, etc…where the test pressures requested are very low (0.5…10 mbar) and therefore pressure adjustment must be extremely stable and precise. For us, the T9000 series is the most technologically forward of measurement systems, equipped with an advanced interface, useful for analysis and research during the prototyping or pre-series phase, as well as for production line testing. The big, 7” colour display set in a capacitive glass panel allows total interaction with the internal menus and the main screen. The "smart" testing archive contains daily and monthly analysis functions and those specifically for each test program, to keep the level of quality of your products under control. The new T9740 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.
