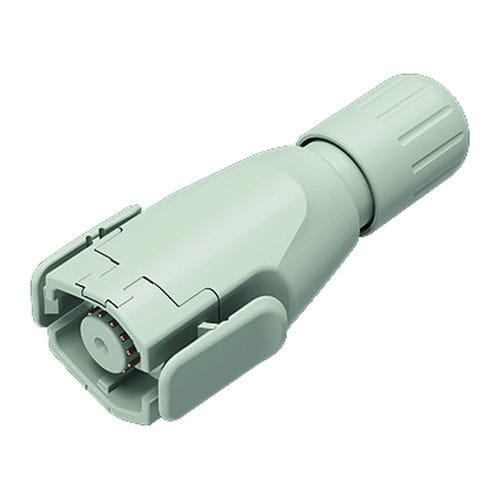

Male connector 570
for medical devicesbrass

Male connector - 570 - Franz Binder GmbH & Co. Elektrische Bauelemente KG - for medical devices / brass
Male connector - 570 - Franz Binder GmbH & Co. Elektrische Bauelemente KG - for medical devices / brass
Male connector - 570 - Franz Binder GmbH & Co. Elektrische Bauelemente KG - for medical devices / brass - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
male
Applications
for medical devices
Other characteristics
brass
Primary current

2 A

Description

Connector locking system - snap-in Termination - solder Degree of protection - IP54 Connection cross-section - max. 0.25 mm² / AWG 24 Cable outlet - 4.0-6.0 mm Temperature range from/to - -25 °C / 85 °C Mechanical operation - > 5000 Mating cycles Weight (g) - 17.43 Customs tariff number - 85369010 Country of Origin - DE Electrical parameters Rated voltage - 150 V Rated impulse voltage - 1500 V Rated current - 2.0 A Insulation resistance - ≥ 1010 Ω Pollution degree - 2 Overvoltage category - II Insulating material group - II EMC compliance - unshielded Housing material - PA Contact body material - PA Contact material - CuZn (brass) Contact plating - Au (gold) REACH SVHC - CAS 7439-92-1 (Lead) SCIP number - d7aef40e-41cc-4e80-9aea-62cc045796c7 PFAS present - yes
