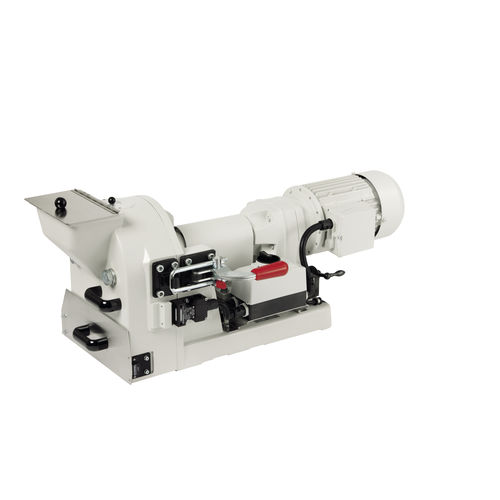

Disc mill PULVERISETTE 13 classic line

laboratorypharmaceutical industrysample

The especially heavy and solid FRITSCH Disk Mill PULVERISETTE 13 classic line is the ideal instrument for fine grinding of up to 150 kg per hour of hard-brittle and medium-hard solids – even in continuous operation. The maximum feed size per piece is approximately 20 mm edge length, the final fineness is freely adjustable between 12 mm and 0.1 mm. Pressure and shearing action The material to be ground is comminuted by pressure and shearing action between two counteracting grinding disks with coarse interlocking teeth. The ground material automatically falls down through a pre-set grinding gap into the collection drawer. The desired final fineness can be defined from the outside by changing the gap width. FEATURES Feed size up to 20 mm max. throughput150 kg/h Final fineness 0.1 -12 mm Rotational speed grinding disk 440 rpm Precise gap adjustment with an accuracy of 0.1 mm Especially safe due to central tension lock of the grinding chamber Fast, easy cleaning Simple operation Fast grinding disk change Precision setting of the final fineness even during grinding High service life due to generously dimensioned bearings Easy gap width check from the outside Combinable with the Jaw Crusher PULVERISETTE 1 classic line Especially time saving: The grinding chamber can be completely opened which makes cleaning especially simple and the grinding disks are very easily accessible for changing. Especially accurate The precision sliding table of the FRITSCH Disk Mill PULVERISETTE 13 classic line for precise gap adjustment with an accuracy of 0.1 mm – for rapid, precise operation and exactly reproducible grinding results
