Control analyzer PY-3030S

for environmental analysispyrolysis

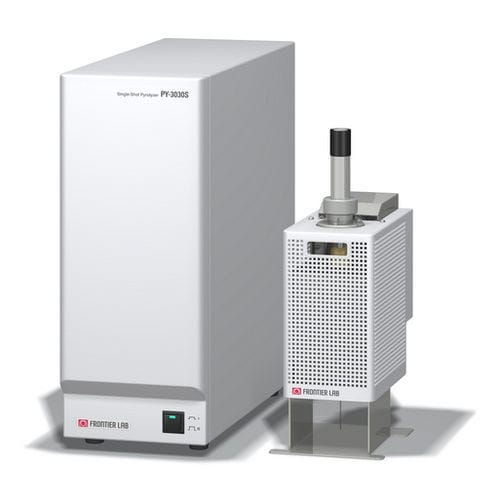

An ideal model for basic polymer research as well as quality control of polymeric products. Single-Shot Pyrolyzer PY-3030S is a pyrolyzer specially designed for flash pyrolysis. 1. High performance and high reliability Guaranteed reproducibility of polystyrene pyrograms: The reproducibility of the peak area ratio of styrene trimer and methyl stearate internal standard is 2% or less in RSD. 2. Any type of sample can be analyzed Samples with a wide range of sample forms can be analyzed using five samplers including two new optional samplers (on-line Micro Reaction Sampler and Micro TD Sampler). 3. Automated analysis and enhanced reliability Auto-Shot Sampler (AS-1020E) can be used for automated analysis of up to 48 samples. This improves the reliability of analysis results. Furnace temperature control range/stability: 40 - 800 ºC (1 ºC step) / ± 0.1 ºC Py-GC interface temperature control range/stability: 100 - 400 ºC (1 ºC step) / ± 0.1 ºC Performance guarantee (polystyrene pyrogram): Reproducibility of trimmer/internal standard ratio is 2 % or less (RSD) Requirements: Gas chromatograph (with split/splitless injector), control PC Size (furnace): 76 (W) x 143 (D) x 215 (H) mm, 1.6 kg (cables excluded) Power requirement: 100/120 VAC or 200/240 VAC (400 W max)
