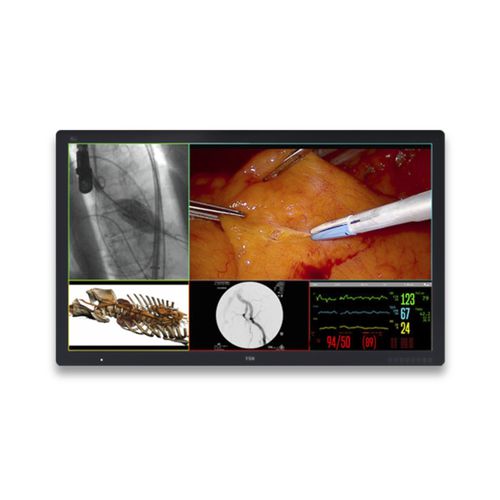

Medical display FM-D5802DV

surgicalmedical imagingdiagnostic

Overview
FM-D5802DV supports multi-modality imaging with a dedicated DICOM mode, enabling diagnostic-quality viewing on a surgical-grade display. The all-in-one design and broad compatibility make the FM-D5802DV suitable for a range of clinical applications where accurate grayscale and color reproduction are required.

Design & Connectivity
High-performance video interfaces include HDMI, DVI (single & dual link) and DisplayPort. The 58-inch screen can display multiple inputs simultaneously. A flush-front protective glass overlay facilitates cleaning and infection-control procedures. FSN’s ergonomic choices—rounded bezel corners, wide viewing angles and a backlit touch menu—are designed for efficient and safe interaction in clinical environments.

Features

• DICOM mode for consistent diagnostic grayscale
• High brightness and high contrast LCD technology
• Combined grayscale and color imaging on a single multi-modality display
• Uniform brightness across the entire screen surface
• Luminance stability using backlight sensor technology

Technical specifications

• Panel: 58 inch TFT LCD (LED)
• Resolution: 3840 x 2160 pixels
• Aspect Ratio: 16 : 9
• Active Area: 1270.08 (H) mm x 721.44 (V) mm
• Pixel Pitch (mm): 0.33075 x 0.334
• Response Time (typical): 9.5 ms (gray to gray)
• Number of Colors: 1.07 Billion
• Brightness (typical): 700 cd/m2
• Gamut: BT.709 and BT.2020 compatible
• Contrast Ratio (typical): 4000 : 1
• Surface Treatment: Anti-glare
• Viewing Angle (CR>10): R/L 176°, U/D 176°
• Input Signal: 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link), 2 x DVI (dual link)
• Output Signal: 1 x DP 1.2 (SST), 1 x DVI (single link)
• Power Supply: SMPS (AC 90 ~270V) x 2 ea.
• Power Consumption: 280W (nominal), 350.4W (max)
• Accessories Included: User manual, AC power cord, DP cable, HDMI cable, DVI-D cable, Remote control and batteries
• Unit Dimension: 1358 (W) x 822 (H) x 105 (D) mm
• Package Dimension: 1565 (W) x 985 (H) x 305 (D) mm
• IP Rating: IP20 overall, IP42 front side only
• IK Rating: IK08 with 5H AR glass
• Weight: 43.41 kg (monitor with cover), 60.1 kg (shipping package)
• DICOM Mode: Yes
• Backlight Sensor: Yes
• Certifications: ANSI/AAMI ES60601-1 (UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device
