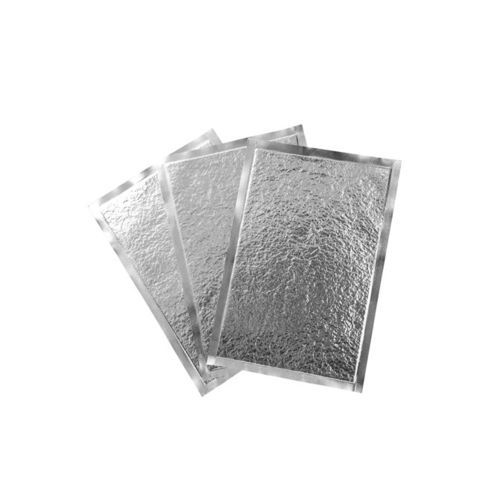

Panel Yinlin Ultrathin-VIP

Product overview
Yinlin Ultrathin-VIP is an ultrathin vacuum insulation panel designed to deliver high thermal resistance in minimal thickness. It is optimized for thermal management in new-energy lithium-ion battery packs, improving low-temperature power retention and enabling compact module designs.

Specifications

• Model name: Yinlin Ultrathin-VIP
• Initial thermal conductivity (room temperature): λ ≤ 3 W/(m·K)
• Thickness: 1–5 mm
• Standard size range: 100×100 mm to 600×1000 mm
• Stability after 85℃, 85% RH for 1000 h: λ ≤ 3 W/(m·K)
• Copper acetate salt spray (240 h) performance change: △λ < 2 mW/(m·K)
• Withstand pressure: 3800 VDC, leakage current < 1 mA
• Temperature application range: -40℃ to 90℃
• Insulation resistance: 500 MΩ; dielectric withstand voltage: 5000 V
• Density range: 400–550 kg/m³

Advantages

• Improves low-temperature discharge performance of power batteries, reducing cold-start power loss
• Ultra-thin form factor saves internal package volume and weight compared with conventional insulation
• Thermal resistance equivalent to 8–10× conventional thermal insulation materials
• Porous core reduces solid conductive heat flow
• High vacuum minimizes convective heat transfer within the panel
• Composite reflective film reduces radiative heat transfer to enhance overall insulation

Applications & integration

• Primary applications: lithium-ion battery modules and packs for EVs, ESS, new energy power systems
• Integration tips: cut-to-size delivery, compatible with adhesive bonding and lamination processes; consider edge sealing and mechanical support in pack design
• Handling & storage: avoid puncture/impact, store in dry ambient conditions within recommended temperature range to preserve vacuum performance
