ECG transmitter LX-1300

RESPSpO2wireless

Product overview

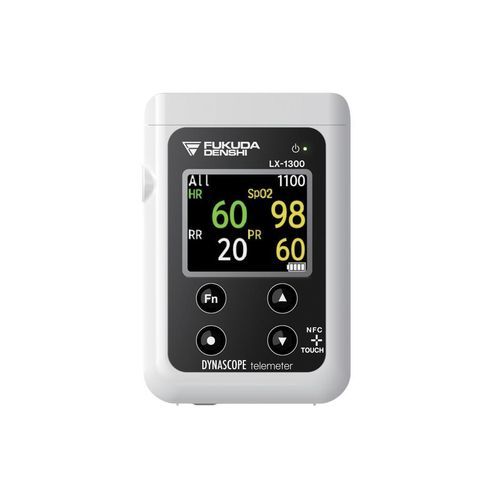

The LX-1300 is a compact, lightweight telemetry transmitter providing continuous ECG, Respiration (RESP) and SpO2 monitoring. It operates on standard AA batteries for up to 10 days of continuous use. A color-coded display presents ECG, RESP, SpO2 and perfusion index values at a glance, supporting clinical workflow and reducing observation time. The housing is designed for improved cleanability and durability, with an ergonomic profile for routine patient care.

Models / variants
The LX-1300 series includes three models: LX-1300M (compatible with Masimo® SpO2 sensors), LX-1300N (compatible with Nellcor™ SpO2 sensors), and LX-1300E (ECG and Respiration only, without SpO2). Select the model according to sensor compatibility and monitoring requirements.

Key features

• Compact and lightweight, approx. 110 g excluding battery
• Up to 10 days continuous operation with standard AA batteries
• IPX8 waterproof rating for enhanced protection
• Compatibility with Masimo® or Nellcor™ SpO2 sensors depending on model
• Color-coded display for quick parameter identification
• Redesigned battery cover for a secure, reliable seal

Additional product information
The LX-1300 is optimized for everyday clinical use with a focus on ease of cleaning and durable performance. The color-coded display and compact form factor facilitate rapid patient checks and integration into telemetry workflows.

Technical specifications

• Model name: LX-1300 (series: LX-1300 series)
• Measurements: ECG, Respiration (RESP), SpO2 (model-dependent)
• Variants: LX-1300M (Masimo® SpO2), LX-1300N (Nellcor™ SpO2), LX-1300E (ECG + RESP only)
• Battery life: Up to 10 days continuous use on standard AA batteries
• Weight: Approx. 110 g excluding battery
• Dimensions: 64.0 W x 96.0 H x 27.0 D mm
• Ingress protection: IPX8 waterproof
• Display: Color-coded display showing ECG, Respiration, SpO2 and PI values
• Design: Redesigned battery cover; improved robustness and cleanability
