Electrocardiograph

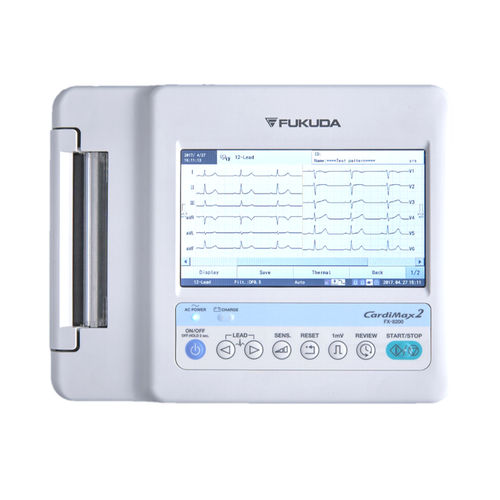

CardiMax FX-8200
The weight is only 1.2kg and size is smaller than A4 size. But enables superior performance and allows a wide range applications.
FEATURES
Interpretation / Arrhythmia function800 x 480 resolution colour LCD display6 / 12 lead ECG display6 / 12 channel on 110 mm paperInternal memory for ECG data storageLAN port for external connectivity
SPECS
Dimensions
225(W) x 180(D) x 50(H) mm
Weight
1.2 Kg
Standard 12-lead ECG Waveform Recording
The FX-8200 acquires 12-lead ECG, and prints waveforms and measurements on to 110mm wide chart paper. The hardware and software program have been newly designed to increase the overall accuracy of the ECG measurement.
Varieties of Recording Formats
The operator can select a desired waveform recording format from a 3 or 6-channel, report. The Automatic Recording Mode allows selection from these as well as a 3-channel +1 rhythm lead. In addition, a reporting format for the measurement report or the optional ECG analysis report can be selected as required.
R-R Trendgraph Examination
Examination of the R-R interval trend, a standard feature.measures and quantifies R-R intervals for a selected lead for a maximum of 5 minutes and records the result as a report. The report can be used as an indicator for autonomic imbalance.
Internal Memory
The FX-8200 is equipped with an internal memory which can store up to 500 examinations. The operator can review selected ECG records from the memory and print them as required. A data list can also be printed.
