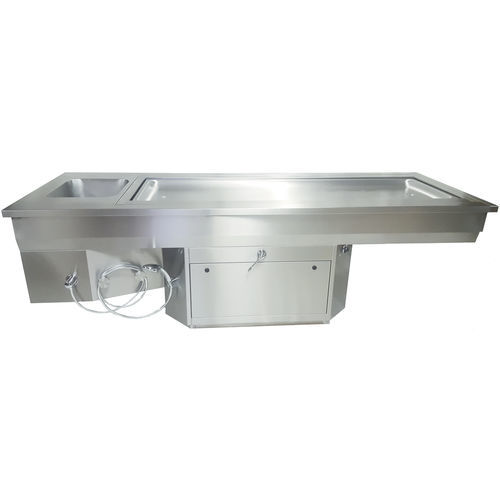

Autopsy table with removable roller track
system made of stainless steel (AISI 304) and
circumferential downdraft extraction for
working conditions free of harmful substances. Optionally with or without basin. The
integrated body transfer system allows easy
handling of bodies from the admission to the
dissection without repositioning.
Table top :
- Stop profile folds down at the front for loading and unloading the tray. Thanks to special
clamping devices in the roller track system, the body tray is fixed in place during insertion with
closing of the flap without readjustment and guarantees high stability during dissection.
- Optionally available attachment allows to widen the dissection area.
- The roller track system is removable and allows easy cleaning.
- The suction area with negative diagonal fold and built-in gradient towards the drain prevents water or liquids from entering the ventilation duct. Ventilation duct with specially designed, removable cover.
Base :
- Rectangular column with splash-proof power socket (230V- IP 44 - IP65 protection class).
Strong frame plate, screwed onto the floor, prevents the table from tilting.
- Specially designed, knee-operated safety mixing tap with shower hose.
- The exhaust air connection and the required media connections are installed inside the base
of the column and closed with removable inspection flaps.
Electrically height adjustable via 2
lifting columns, sealed control element for height adjustment (IP 67 protection class)
Dimensions L/W/H:
2730 x 850 x 750 - 1050 mm
Organbasin:
500 x 400 x 200 mm
Payload:
max. 200 kg
Voltage:
230/1/50
Extraction air volume:
1000 m³/h
Ventilation duct:
Ø 250 mm
