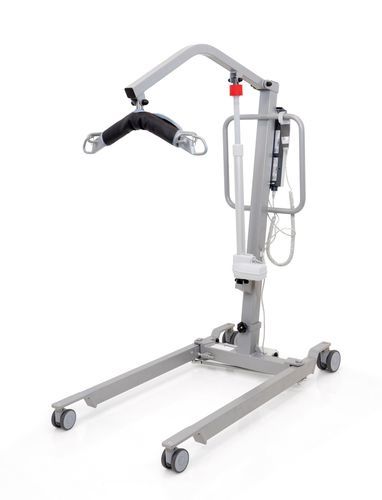

Battery-operated patient floor lift Smirthwaite 130 Mobile Hoist
electricon castersportable

Battery-operated patient floor lift - Smirthwaite 130 Mobile Hoist - G and S Smirthwaite Ltd. - electric / on casters / portable
Battery-operated patient floor lift - Smirthwaite 130 Mobile Hoist - G and S Smirthwaite Ltd. - electric / on casters / portable
Battery-operated patient floor lift - Smirthwaite 130 Mobile Hoist - G and S Smirthwaite Ltd. - electric / on casters / portable - image - 2
Add to favorites
Compare this product
Go to the G and S Smirthwaite Ltd. website for more information

Characteristics

Operation
battery-operated, electric
Configuration
on casters, portable
Patient type
pediatric, adult
Options
with weighing scale, transportable
Number of cycles

30 unit

Lifting capacity

130 kg
(286.6 lb)

Lifting height

Max.: 175 cm
(69 in)

Min.: 38 cm
(15 in)

Base width

Max.: 115 cm
(45.3 in)

Min.: 62 cm
(24.4 in)

Base length

Max.: 123.5 cm
(48.6 in)

Min.: 123.5 cm
(48.6 in)

Weight

40 kg
(88.18 lb)

Description

Short description
This user-friendly mobile patient hoist supports safe transfers with minimal strain for caregivers while ensuring dignity and comfort for the patient.

Product description
The Smirthwaite 130 is a value-oriented mobile moving and handling hoist with a 130 kg safe working load, powered leg opening and market-leading Linak® actuators. Designed for everyday use in professional and homecare environments, it is suitable for transferring children, young adults and adults and allows a single unit to serve multiple patients.

Features & Benefits
  • Cost-effective solution while retaining essential functions for safe transfers.
  • Powder-coated steel frame for stability and durability.
  • Safe working load: 130 kg.
  • Intuitive Linak control system for raising/lowering the carry bar and operating powered leg opening/closing.
  • Integrated safety features: emergency lowering, manual lowering and emergency stop button.
  • Easy positioning with large swivel castors, ergonomic handle and electrically operated leg opening/closing.
  • Tool-free, single-person assembly for quick installation.
  • Optional QRS Carry Bar for fast carry-bar changes and compatibility with QRS scales for weighing.
  • 5 year warranty.

Technical Specification - Weights and dimensions
  • Safe working load: 130 kg
  • Unit weight (unboxed): 40 kg
  • Carry bar weight (optional): 2 kg
  • Height: 1,340 - 2,010 mm
  • Length: 1,235 mm
  • Under bed clearance: 100 mm
  • Lifting range (floor to carry bar): 380 - 1,750 mm
  • Leg opening range: 620 - 1,150 mm
  • Turning circle: 1,010 mm

Details
  • Material: Powder-coated steel, vinyl PVC
  • Front castors: 75 mm
  • Rear braked castors: 100 mm
  • Hand controls: Wired electric hooked handset
  • Lift actuator: Electric (LA40)
  • Leg actuator: Electric (LA23)
  • Charging time: 8 hours
  • Lifts per charge: 30
  • Sling connection: Looped

Additional information
Carry Bar: Standard, QRS

Technical Specifications
  • Brand: Smirthwaite
  • Model: Smirthwaite 130 Mobile Hoist
  • Warranty: 5 year
  • Optional: QRS Carry Bar and compatibility with QRS scales
