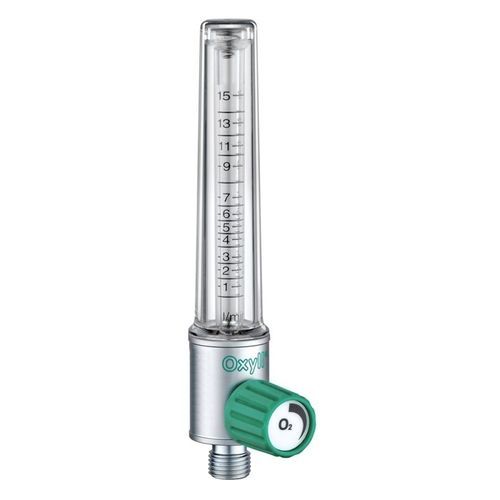

Oxygen flow meter GSHEOX1
Add to favorites
Compare this product
Characteristics
- Fluid type
- oxygen
- Output
Min.: 0 l/min
(0 us gal/min)Max.: 15 l/min
(3.9626 us gal/min)- Pressure
60 psi
- Weight
160 g
(6 oz)
Description
Chromium–plated brass body, inner and outer tube in polycarbonate, stainless steel float, other parts in brass, polyamide and NBR. This equipment compensates the variations of pressure of the pipeline since it admits all the pressure of the line, maintains the pressure and it provides to the patient the selected flow under atmospheric pressure, through the mask, nasal catheter, humidifier, etc.
Technical data:
Gases: Oxygen, Air
Dimensions: 145 / 48 mm
Inlet: Whitworth GAS 1/8”
Outlet: DISS O2 9/16” - 18 UNF
Accuracy: ±10%
Fittings: BS, NF, DIN and SS. Other fittings available on request
