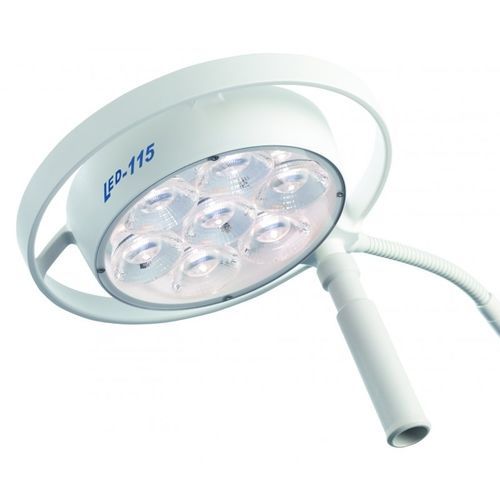

LED examination light GSDMLED 115

wall-mountedmobile

Light field diameter d10 at a distance of 0,5 meters: 103 mm Light field diameter d10 at a distance of 1 meter: 228 mm Light field diameter d50 at a distance of 0,5 meters: 60 mm Light field diameter d50 at a distance of 1 meter: 103 mm Light intensity with one shadower: 0 % Light intensity with two shadowers: 78 % Light intensity on the ground of a normed tube: 100% Light intensity on the ground of a normed tube with one shadower: 0 % Light intensity on the ground of a normed tube with two shadowers: 78 % Illumination depth 60 %: 1180 mm Colour rendering index Ra: 95 Colour rendering index R9: 90 Max. radiation in field in a distance of 1 meter: 51 W/m² Max. radiation in field in a distance of 0,30 meters: 330 W/m² Light field size 10 cm Colour temperature (Kelvin): 4000 K Temperature increase in head area: 0,5 °C Number of LED’s: 7 Life span of LED’s: ≥ 40.000 h Light head diameter: 22 cm Operating voltage DC: 24 V DC Current: 0,42 A Mounting options: With fixation clamp for supply rails With fixation on round and rectangular tubes With fixation plate Table mounted light with fixation clamp
