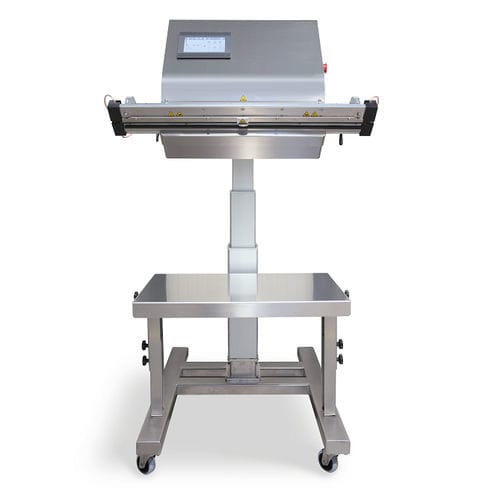

Medical sealer UNICA
automaticimpulsefloor-standing

medical sealer
medical sealer
medical sealer
medical sealer
medical sealer
medical sealer
medical sealer
Add to favorites
Compare this product


Characteristics

Applications
medical
Operation
automatic
Technology
impulse
Configuration
floor-standing
Seal length

610 mm, 810 mm, 1,010 mm, 1,210 mm
(24 in, 31.9 in, 39.8 in, 47.6 in)

Power

1,400 W, 1,800 W, 2,100 W, 2,400 W

Sealing temperature

Max.: 220 °C
(428 °F)

Min.: 40 °C
(104 °F)

Weight

57 kg, 60 kg, 63 kg, 65 kg
(125.7 lb, 132.3 lb, 138.9 lb, 143.3 lb)

Width

730 mm, 930 mm, 1,130 mm, 1,230 mm
(29 in, 37 in, 44 in, 48 in)

Height

280 mm
(11 in)

Description

UNICA is the brand new pneumatic impulse sealer by Gandus Saldatrici, designed for Life Science and high demanding applications. Management via Touch screen or remotely via PC, tablet, mobile phone. Stainless steel construction. Double sealing bar. Validatable version according to ISO 11607 rules. Venturi air suction system with 1 nozzle settable position from 0-150 mm long. Designed and manufactured for all heat-sealable materials, which generally find application in medical, pharma, LifeScience fields. Footswitch functioning included. Advantages and benefits - Maximum performance control of all critical sealing parameters for an extremely precise validation process - AISI 304 stainless steel construction to operate in highly demanding environments with very high performance requirements - Management by 7 " color touch screen and remotely via app without connection cables. - Diagnostics directly from Touch screen to evaluate the status of the machine at all times. - User friendly Software interface - Ropex control - Up to 64 predefined recipes - Machine / Bag counter - Including Venturi air intake system with adjustable nozzle in position and length up to 150 mm for extremely accurate suction on bags of any size and with any filling level - Traceability from external network to send, receive and download all traceability data - Easy Access App for Remote touch screen interaction, Remote diagnostics, Single-point management at the same time of multiple machines located in multiple places - Machine settings via HMI, remote access and control via VNC, data exchange IN / OUT via MODBUS TCP / IP protocol
