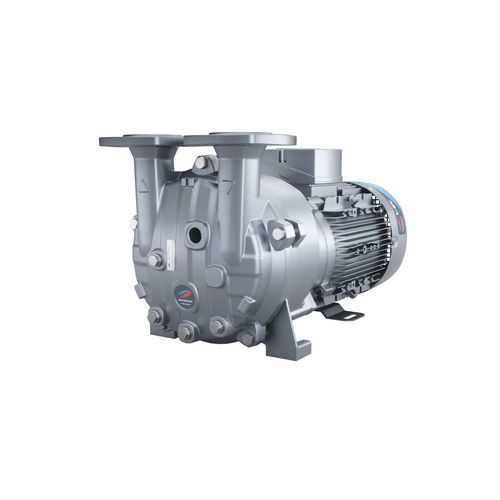

Laboratory compressor L-BV5

stationary1-workstationlubricated

Introduction
The L-BV5 monoblock liquid-ring compressors are engineered for high-volume gas handling where condensable vapors are present. The design integrates a monoblock layout with reinforced components to ensure reliable continuous operation in industrial environments.

Benefits

• Wide flow range: selectable volume flow from 90 to 600 m³/h for varied process demands.
• Condensable vapor handling: suitable for applications with condensable vapors without loss of performance.
• Reinforced components: stainless steel shaft and coated housing for improved wear resistance.
• Continuous lubrication: roller-bearing design with provision for continuous lubrication to reduce maintenance intervals.
• Reduced noise and vibration: design measures for lower acoustic emissions and minimized vibration.
• Energy-conscious design: optimized for efficient operation in high-volume gas transfer.
• Wear-resistant surfaces: ceramic coatings available on key components to extend service life.

Technical Data

• Volume flow: 90–600 m³/h (typical selection range across the series).
• Application capability: designed for large gas volumes and gases containing condensable vapors.

Industries / Applications

• Ceramic and brick manufacturing
• Drying systems and kiln ventilation
• Environmental engineering and emissions control
• Food & Beverage processing
• Lifting & handling systems
• Packaging lines
• Plastics processing

Technical specifications

• Model family: L-BV5 monoblock liquid-ring compressors.
• Max. discharge volume: up to ~600 m³/h depending on application conditions.
• Construction: reinforced stainless steel shaft; coated compressor housing.
• Bearings: roller bearings with continuous lubrication provision.
• Surface treatment: ceramic coatings available for key wear-prone parts.
• Operation: suitable for condensable vapors and demanding process environments.
• Acoustics & dynamics: engineered for low noise and reduced vibration.
• Efficiency: optimized for energy savings in high-volume gas handling.
