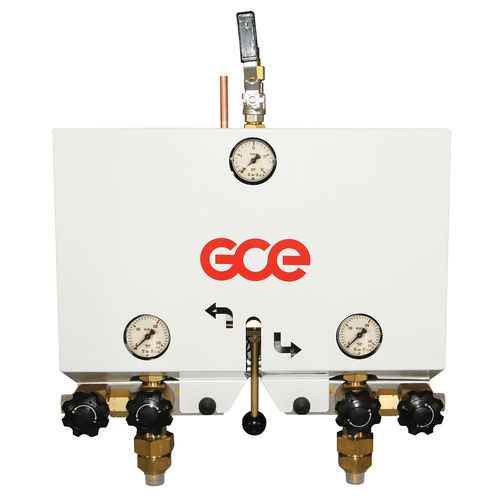

Medical gas manifold MM40

for hospitalsautomaticsupply

The GCE MM40 HP Unit is an automatic gas manifold that ensures continuous gas supply by seamlessly switching between operational and reserve sides without interrupting the flow. Introduction The GCE MM40 HP Unit automatic gas manifold operates based on the principle of pressure differences between the operational and reserve regulators. Using a manual lever, the operator can select which side will be the operational and which will be the reserve. When the operational side is depleted, the medical gas manifold automatically switches to the reserve side with lower regulator pressure, ensuring a continuous gas supply without interrupting the flow. Features Gas Alarm Accessory The gas alarm is a standard feature, providing both visual and audible alerts for enhanced safety. It can communicate with other equipment through relays, ensuring integrated system functionality. First-Stage Regulation The MM40 gas manifold serves as the first stage of regulation and must be installed alongside a stabilizer to maintain the final pressure at hospital gas outlets. Regulatory Compliance GCE medical gas manifolds are CE-marked and fully comply with ISO 7396-1 standards, guaranteeing reliable and safe performance. General properties Nominal flow (m3/h) 40 Inlet nominal pressure (BAR) 200 (20000 kPa) Outlet nominal pressure 12 bar (setting range 9–16 bar) Inlet connection W21,8×1/14"M Outlet connection G1/2"M + soldering piece pipe ø 10, ø 15 mm Pressure relieve valve 17 bar Pressure relieve valve pipe dimension ø 10 mm Purge valves connection W21,8×1/14"M
