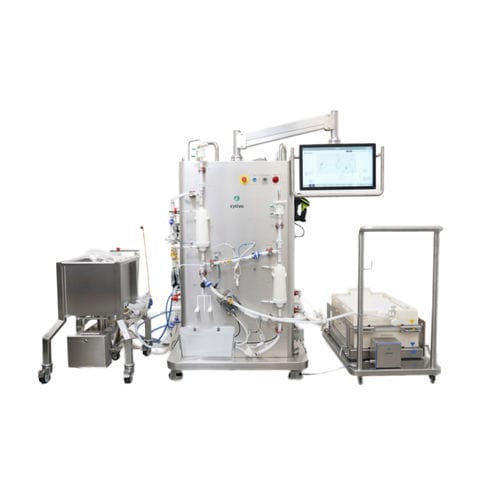

Microfiltration filtration system DPFS-20L

medicalstainless steel

The Cytiva™ drug product filtration system operates using configurable recipe-controlled phases to automatically perform terminal sterilization prior to filling with maximum product recovery using standard flow kits. It has been designed to support EU GMP Annex 1: Manufacture of sterile medicinal products requirements for contamination control strategies with automated in situ pre-use post-sterilisation integrity testing (PUPSIT) and post-use integrity testing of sterile filters. Fully automated sterile filtration with configurable recipe-controlled phases Automated PUPSIT and post- use integrity testing Enhanced product recovery method for reduced product loss Compatible with a wide range of filter sizes Single-use flow kits for rapid turnaround between batches One system for both single and redundant filtration Integrated human machine interface (HMI) Product specifications Dimensions (W × D × H) 118 × 105 × 72 cm IP (Ingress Protection) Rating IP54 Materials of construction Stainless steel 1.4301 (304) Surface Finish Cold rolled steel with minimal work marks (typically Ra < 1.2 µm) Weight (kg) 135
