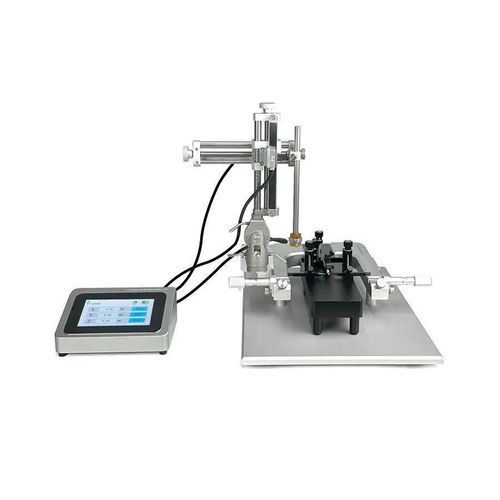

Mice laboratory stereotactic frame SA-150 series

for ratsfor rodentsdigital

Introduction
Digital stereotaxic instruments assist researchers in accurately locating and operating on rodent brains. X/Y/Z axes are fitted with displacement sensors and coordinates are displayed in real time on a digital screen. The display supports zeroing; digital reading accuracy is 0.01 mm (10 μm), facilitating experimental workflow and improving positioning accuracy.

Features

• 4.3-inch touch screen: clear digital readout, touch control and adjustable brightness for varied lighting conditions.
• Zero adjustment: real-time coordinate display for X/Y/Z axes with zeroing capability; digital reading accuracy 10 μm.
• Three axes movable and rotatable: travel range 0–80 mm with vernier caliper scale; mechanical reading accuracy 0.1 mm. Cross manipulator rotates 360° horizontally and 180° vertically and can be locked to assist oblique injections.
• Precision components: rat ear bar with spiral adjustment enabling micron-level displacement.
• Expandable: can be configured as a digital dual stereotaxic instrument.

Application area

• Neural circuit research: inject viral vectors into targeted brain regions to study behavior, memory and emotion regulation.
• Disease model establishment: inject agents or tumor cells into specific brain regions to create models of Parkinson's disease, epilepsy and brain tumors.
• Electrophysiology: precise electrode implantation for neuronal electrical activity recording.
• Optogenetics: accurate fiber implantation for targeted light stimulation or inhibition of neurons.

Ordering information
Item | Product
SA-150 | Digital Stereotaxic Instrument, Rat and Mouse
SA-150M | Digital Stereotaxic Instrument, Mouse
SA-150R | Digital Stereotaxic Instrument, Rat
SA-150-2 | Digital Dual Stereotaxic Instrument, Rat and Mouse
SA-150M-2 | Digital Dual Stereotaxic Instrument, Mouse
SA-150R-2 | Digital Dual Stereotaxic Instrument, Rat

Appearance
Product variants shown include SA-150, SA-150R and SA-150M-2.

Technical specifications

• Digital screen: 4.3-inch touch display, adjustable brightness.
• Displacement sensors on X/Y/Z axes with real-time coordinate display.
• Digital reading accuracy: 0.01 mm (10 μm).
• Mechanical/vernier reading accuracy: 0.1 mm.
• Axes moving range: 0–80 mm.
• Cross manipulator rotation: 360° horizontal, 180° vertical, lockable for oblique injection.
• Ear bar: spiral adjustment for micron-level displacement (for rats).
• Expandable to dual digital stereotaxic configuration.
