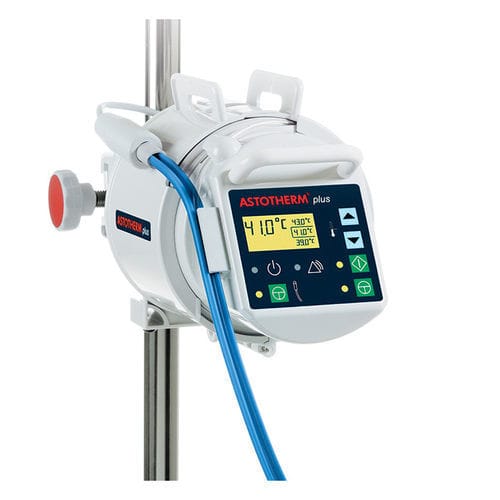

Dialysis infusion warmer ASTOTHERM® Plus

emergencyintensive careoperating room

Blood and Infusion Warming System Warm infusions and transfusions help protect your patient from hypothermia in the Operating Room and the Intensive Care units. ASTOTHERM PLUS warms all infusions and transfusions by a dry flow-heating method for daily use. The ASTOHERM PLUS is ready for use once plugged in. It is then ready to provide warmth to the patient without the requirements of pre-warming. This allows fluid and blood units to be kept in the refrigerator until they are ready for use. The ASTOTHERM PLUS is ready to use in under 60 seconds, with the results that your patient in the OR or ICU can be supplied with warm transfusions or infusions. The ASTOTHERM PLUS can cover over 97% of clinically relevant transfusion and infusion rates. Can be used continuously – 24 hours a day Special groove for rapid insertion of the ASTOTUBE extension line and optimum heat transfer Temperature selection: 39C/41C/43C Power Consumption is 450VA Optional heat protection sleeve Microprocessor-controlled for simple operation Temperature selector - 39°C, 41°C and 43°C Voltage - 230/240 V (110/115 V) Power consumption - 450 W Initial warm-up time - » 1 min Dimension mm (HxLxD) - 145x135x295 Weight - 2,9 kg Operating mode - Continous (24 h/day) Category of protection class - I Grade of protection - B, defibrillation-proof Humidity protection - IPX 4 Classified following 93/42 EEC - Class II b Notified Body - CE 0124
